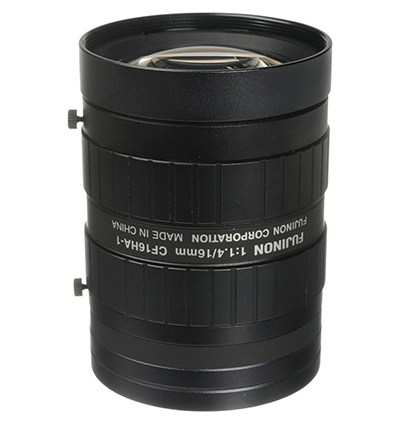

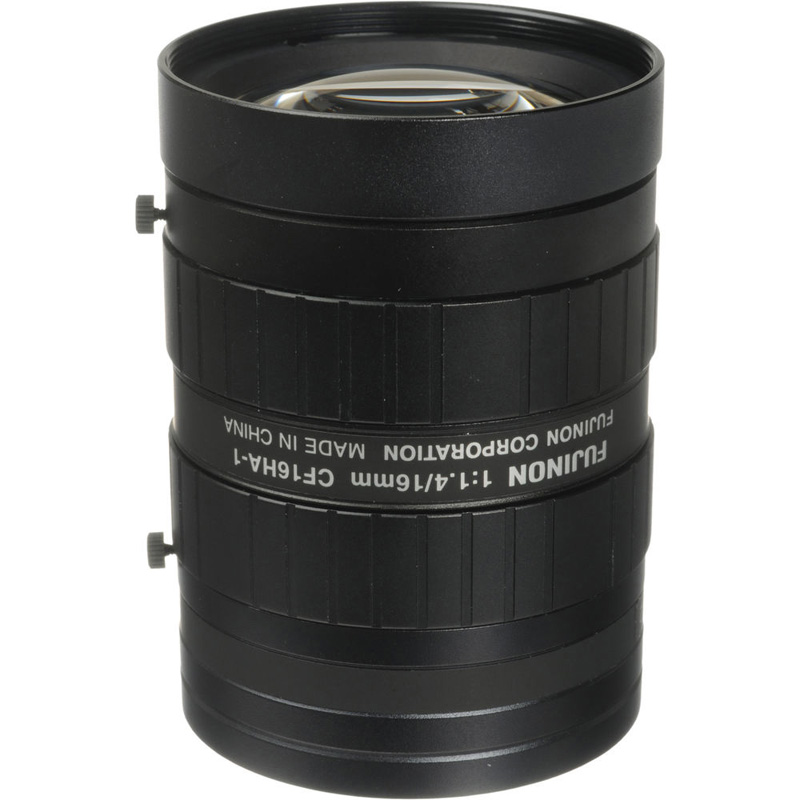

Fujinon CF16HA-1 C Mount Lens

• High Resolution design, providing support for up to 1.5 megapixel camera resolution.
• Rear focusing system provides improved performance in macro photography.
• Wide-aperture (F1.4) design achieves clear images under low light intensity.
• Low-distortion design achieving accurate image input.
• Robust enclosure resistant to vibrations and shocks. Equipped with locking knobs for the iris and the focus.

TECHNICAL INFORMATION:

• Focus: Manual
• Iris: Manual
• Focal Length (mm): 16
• Iris Range: F1.4 ~ F22
• Back Focal Distance (in air) (mm): 17.99
• Exit Pupil Position (From Image Plane) (mm): -172
• Filter Thread (mm): M49 x 0.75
• Mass (g): 280
• Focusing Range (From Front Of The Lens) (m): ~ 0.1
• Angle of View:
  1" - 43°36' x 33°24'
  2/3" - 30°45' x 23°18'
  1/2" - 22°37' x 17°04'
• Object Dimensions at M.O.D. (H x V) (mm):
  1" - 100 x 75
  2/3" - 69 x 51
  1/2" - 50 x 37
• Mount: C
