Fujinon CF25ZA-1S C Mount Lens

Need Help Finding the Best Lens for Your Solution? Call (631) 254-2600
Request a Quote

Get a Quote for the Fujinon CF25ZA-1S C Mount Lens

Please fill out the form below to request a quote. Fields marked with * are required.

First Name: *
Last Name: *
Company: *
Email: *

The Fujinon CF25ZA-1S and the CF-ZA-1S 1" Lens family features 8 to 50mm focal lengths available, ultra-high resolution, very low distortion, for 1/3" to 1.1" sensor size, optimized for 2.5 to 3.45µm pixel size (5-12mp), ideal for use with sony imx304, 250, 253, 255, 264, 267, relative illumination 90% at f/4, minimal vignetting, read less, anti-shock/vibration design, compact construction, screw locks, short minimum working distance.

Download Product PDF:


Focal length [mm] 25
Iris range (F. no) F1.8-F16
Angle of view 32.9°×24.8°
Working Distance*1(mm) ∞-100
Operation of focus Manual
Operation of iris Manual
Filter thread [mm] M37.5 x 0.5
Mount C-mount
Weight (approx.) [g] 170
Sensor size(std.) 1.1"(2.5μm)
CRA (Chief Ray Angle) 2.7
TV distortion [%] -0.83
Dimension [mm] φ39×67.3


Request a Quote

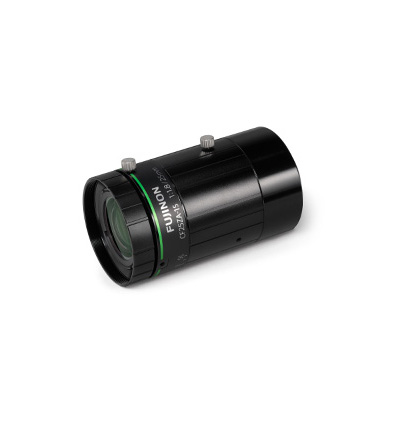

Product image of Fujinon CF25ZA-1S
Product Photos
Product image of  Fujinon CF25ZA-1S
Quick Info for the Fujinon CF25ZA-1S C Mount Lens
Aperture: 1.8 ~ 16
Focal Length: 25mm
Format : 1.1
Manufacturer: Fujinon
Mount: C Mount
Resolution : 12 MP
Ruggedized: Yes
