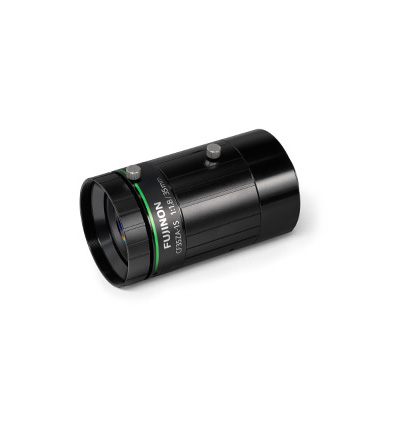

Fujinon CF35ZA-1S C Mount Lens
Get a Quote for the Fujinon CF35ZA-1S C Mount Lens
Please fill out the form below to request a quote. Fields marked with * are required.
The Fujinon CF35ZA-1S and the CF-ZA-1S 1" Lens family features 8 to 50mm focal lengths available, ultra-high resolution, very low distortion, for 1/3" to 1.1" sensor size, optimized for 2.5 to 3.45µm pixel size (5-12mp), ideal for use with sony imx304, 250, 253, 255, 264, 267, relative illumination 90% at f/4, minimal vignetting, read less, anti-shock/vibration design, compact construction, screw locks, short minimum working distance.
Download Product PDF:
TECHNICAL INFORMATION:
Focal length [mm] | 35 |
Iris range (F. no) | F1.8-F16 |
Angle of view | 23.0°×17.3° |
Working Distance*1(mm) | ∞-200 |
Operation of focus | Manual |
Operation of iris | Manual |
Filter thread [mm] | M37.5 x 0.5 |
Mount | C-mount |
Weight (approx.) [g] | 165 |
Sensor size(std.) | 1.1"(2.5μm) |
CRA (Chief Ray Angle) | 4.5 |
TV distortion [%] | -0.32 |
Dimension [mm] | φ39×67.3 |
