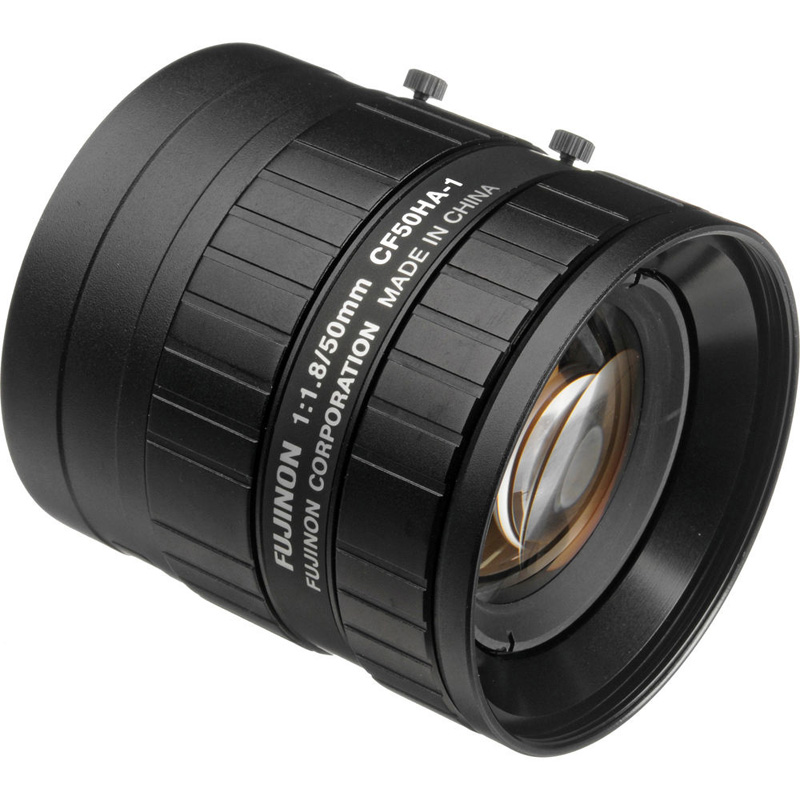

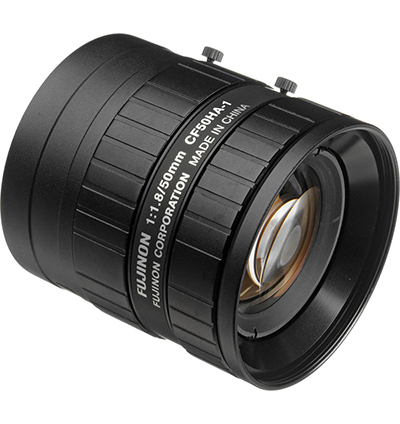

Fujinon CF50HA-1 C Mount Lens

• High Resolution design, providing support for up to 1.5 megapixel camera resolution.
• Wide-aperture (F1.8) design achieves clear images under low light intensity, despite the long focal distance.
• Low-distortion design achieving accurate image input.
• Robust enclosure resistant to vibrations and shocks. Equipped with locking knobs for the iris and the focus.

Download Product PDF:

• Fujinon CF50HA-1

TECHNICAL INFORMATION:

• Focus: Manual
• Iris: Manual
• Focal Length (mm): 50
• Iris Range: F1.8 ~ F22
• Back Focal Distance (in air) (mm): 17.81
• Exit Pupil Position (From Image Plane) (mm): -49
• Filter Thread (mm): M49 x 0.75
• Mass (g): 235
• Focusing Range (From Front Of The Lens) (m): ~ 0.4 (Using an extension tube longer than 5mm will increase the M.O.D. to 0.3m.)
• Angle of View:
  1" - 14^o35' x 10^o 58'
  2/3" - 10^o 03' x 7^o 33'
  1/2" - 7^o 19' x 5^o 30'
• Object Dimensions at M.O.D. (H x V) (mm):
  1" - 101 x 76
  2/3" - 70 x 52
  1/2" - 51 x 38
• Mount: C
