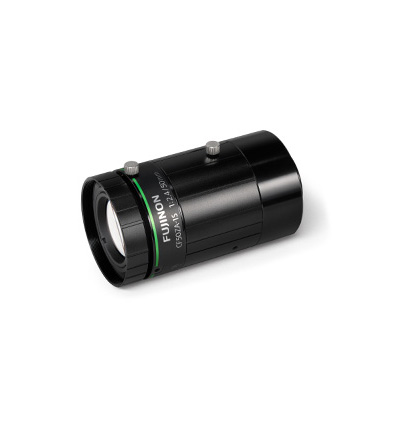

Fujinon CF50ZA-1S C Mount Lens
Need Help Finding the Best Lens for Your Solution? Call (631) 254-2600
Request a Quote
Get a Quote for the Fujinon CF50ZA-1S C Mount Lens
Please fill out the form below to request a quote. Fields marked with * are required.
The Fujinon CF50ZA-1S and the CF-ZA-1S 1" Lens family features 8 to 50mm focal lengths available, ultra-high resolution, very low distortion, for 1/3" to 1.1" sensor size, optimized for 2.5 to 3.45µm pixel size (5-12mp), ideal for use with sony imx304, 250, 253, 255, 264, 267, relative illumination 90% at f/4, minimal vignetting, read less, anti-shock/vibration design, compact construction, screw locks, short minimum working distance.
(1).png){kind=logo}
Download Product PDF:
TECHNICAL INFORMATION:
| Focal length [mm] | 50 |
| Iris range (F. no) | F2.4-F16 |
| Angle of view | 16.6°×12.5° |
| Working Distance*1(mm) | ∞-200 |
| Operation of focus | Manual |
| Operation of iris | Manual |
| Filter thread [mm] | M37.5 x 0.5 |
| Mount | C-mount |
| Weight (approx.) [g] | 155 |
| Sensor size(std.) | 1.1"(2.5μm) |
| CRA (Chief Ray Angle) | 4.8 |
| TV distortion [%] | -0.17 |
| Dimension [mm] | φ39×68 |
| Aperture: | 2.4 ~ 16 |
|---|---|
| Focal Length: | 50mm |
| Format : | 1.1 |
| Manufacturer: | Fujinon |
| Mount: | C Mount |
| Resolution : | 12 MP |
| Ruggedized: | Yes |
