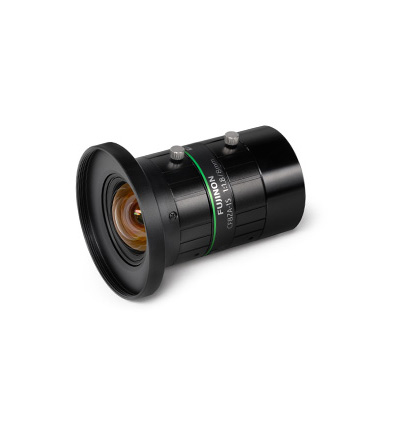

Fujinon CF8ZA-1S C Mount Lens
Need Help Finding the Best Lens for Your Solution? Call (631) 254-2600
Request a Quote
Get a Quote for the Fujinon CF8ZA-1S C Mount Lens
Please fill out the form below to request a quote. Fields marked with * are required.
Fujinon CF-ZA-1S series supports large high-resolution sensor of 1.1" type with 2.5µm pixel pitch (equivalent to 23 mega-pixel). The relative illumination reaches up to above 90%*, and a clear image can be obtained from the image center to the peripheral area.
(1).png){kind=logo}
Download Product PDF:
TECHNICAL INFORMATION:
| Focal length [mm] | 8 |
| Iris range (F. no) | F1.8-F16 |
| Angle of view | 85.7°×67.5° |
| Working Distance*1(mm | ∞-100 |
| Operation of focus | Manual |
| Operation of iris | Manual |
| Filter thread [mm] | M52 x 0.75 |
| Mount | C-mount |
| Weight (approx.) [g] | 180 |
| Sensor size(std.) | 1.1"(2.5μm) |
| CRA (Chief Ray Angle) | 4.5 |
| TV distortion [%] | -4.81 |
| Dimension [mm] | Φ54×67 |
| Aperture: | 1.8 ~ 16 |
|---|---|
| Focal Length: | 8mm |
| Format : | 1.1 |
| Manufacturer: | Fujinon |
| Mount: | C Mount |
| Resolution : | 12 MP |
| Ruggedized: | Yes |
