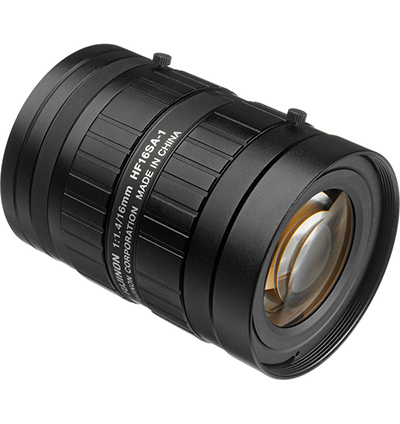

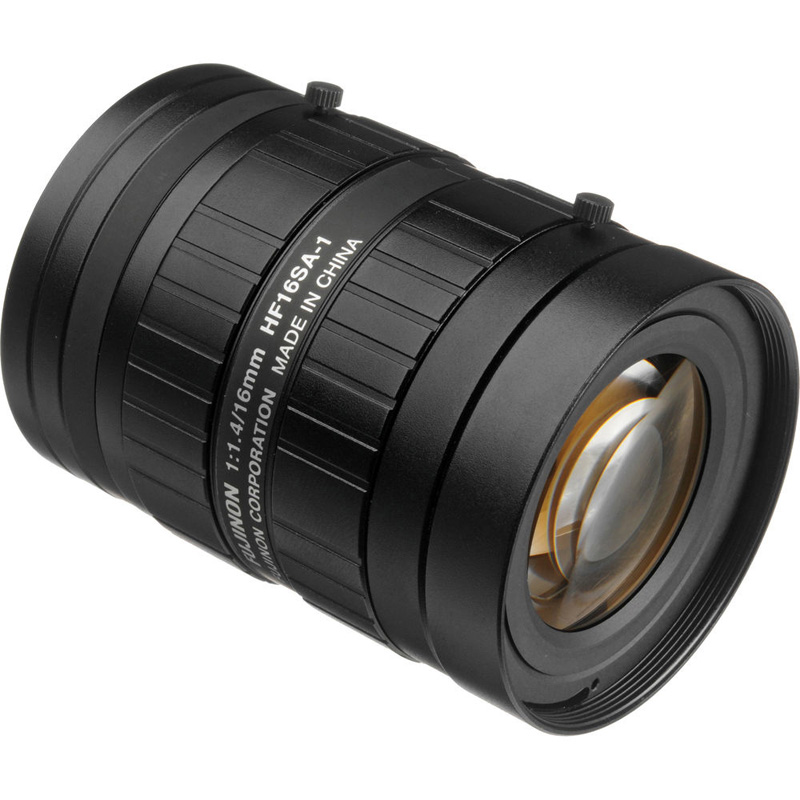

Fujinon HF16SA-1 C Mount Lens

• High Resolution design, providing support for up to 5 megapixel camera resolution.
• Rear focusing system provides improved performance in macro photography.
• Wide-aperture (F1.4) design achieves clear images under low light intensity.
• Enhanced image recognition accuracy achieved by reduction of distortion and improvement of illumination uniformity.
• Robust enclosure resistant to vibrations and shocks. Equipped with locking knobs for the iris and the focus.

Download Product PDF:

• Fujinon HF16SA-1

TECHNICAL INFORMATION:

• Focus: Manual
• Iris: Manual
• Focal Length (mm): 16
• Iris Range: F1.4 ~ F22
• Back Focal Distance (in air) (mm): 17.99
• Exit Pupil Position (From Image Plane) (mm): -172
• Filter Thread (mm): M49 x 0.75
• Mass (g): 285
• Focusing Range (From Front Of The Lens) (m): ~ 0.1
• Angle of View:
  2/3" - 30^o45' x 23^o 18'
  1/2" - 22sup>o 37' x 17sup>o 04'
  1/3" - 17^o 04' x 12^o 50'
• Object Dimensions at M.O.D. (H x V) (mm):
  2/3" - 69 x 51
  1/2" - 50 x 37
  1/3" - 37 x 28
• Mount: C
