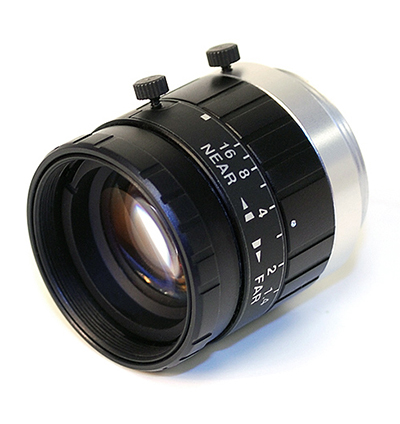

Fujinon HF25HA-1B C Mount Lens

• Design achieving the high resolution, supporting up to 1.5 mega pixel cameras.
• Designed for low distortion, enabling faithful image input.
• Compact, lightweight and robust design, supporting various systems.
• Focus & iris lock tab provided, supporting environments such as vibration.

Download Product PDF:

• Fujinon HF25HA-1B

TECHNICAL INFORMATION:

• Focus: Manual
• Iris: Manual
• Focal Length (mm): 25
• Iris Range: F1.4 ~ F22
• Back Focal Distance (in air) (mm): 14.58
• Exit Pupil Position (From Image Plane) (mm): -32.4
• Filter Thread (mm): M25.5 x 0.5
• Mass (g): 45
• Focusing Range (From Front Of The Lens) (m): ~ 0.15
• Angle of View:
  2/3" - 19°58' x 15°02'
  1/2" - 14°35' x 10°58'
  1/3" - 10°58' x 8°14'
• Object Dimensions at M.O.D. (H x V) (mm):
  2/3" - 53 x 40
  1/2" - 38 x 29
  1/3" - 29 x 22
• Mount: C
