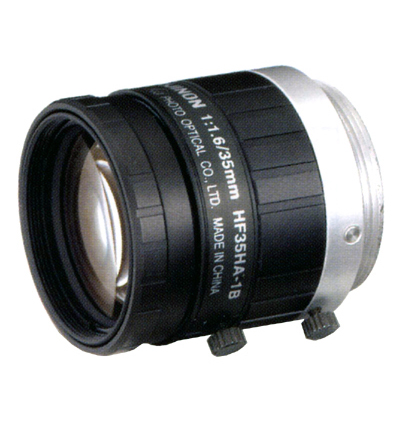

Fujinon HF35HA-1B C Mount Lens
Need Help Finding the Best Lens for Your Solution? Call (631) 254-2600
- Design achieving the high resolution, supporting up to 1.5 mega pixel cameras.
- Designed for low distortion, enabling faithful image input.
- Compact, lightweight and robust design, supporting various systems.
- Focus & iris lock tab provided, supporting environments such as vibration.
Download Product PDF:
TECHNICAL INFORMATION:
- Focus: Manual
- Iris: Manual
- Focal Length (mm): 35
- Iris Range: F1.6 ~ F22
- Back Focal Distance (in air) (mm): 15.03
- Exit Pupil Position (From Image Plane) (mm): -26.6
- Filter Thread (mm): M25.5 x 0.5
- Mass (g): 45
- Focusing Range (From Front Of The Lens) (m): ~ 0.25
- Angle of View:
2/3" - 14°20' x 10°46'
1/2" - 10°27' x 7°51'
1/3" - 7°51 x 5°53' - Object Dimensions at M.O.D. (H x V) (mm):
2/3" - 59 x 44
1/2" - 43 x 32
1/3" - 32 x 24 - Mount: C
| Aperture: | 1.6 ~ 22 |
|---|---|
| Focal Length: | 35mm |
| Format : | 2/3 |
| Manufacturer: | Fujinon |
| Model Type: | Fixed Focal |
| Mount: | C Mount |
| Product Life Cycle: | Mature Product |
| Resolution : | 1.5 MP < |
| Ruggedized: | -- |
