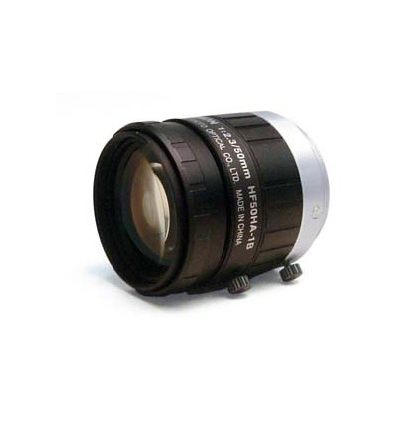

Fujinon HF50HA-1B C Mount Lens


Need Help Finding the Best Lens for Your Solution? Call (631) 254-2600
- Designed for high resolution, supporting up to 1.5 mega pixel cameras.
- Designed for low distortion, enabling faithful image input.
- Compact, lightweight and robust design, supporting various systems.
- Focus & iris lock tab provided, supporting environments such as vibration.
Download Product PDF:
TECHNICAL INFORMATION:
- Focus: Manual
- Iris: Manual
- Focal Length (mm): 50
- Iris Range: F2.3 ~ F22
- Back Focal Distance (in air) (mm): 15.26
- Exit Pupil Position (From Image Plane) (mm): -25.1
- Filter Thread (mm): M25.5 x 0.5
- Mass (g): 45
- Focusing Range (From Front Of The Lens) (m): ~ 0.5
- Angle of View:
2/3" - 10°03' x 7°33'
1/2" - 7°19' x 5°30'
1/3" - 5°30' x 4°07' - Object Dimensions at M.O.D. (H x V) (mm):
2/3" - 77 x 57
1/2" - 56 x 42
1/3" - 42 x 31 - Mount: C
Aperture: | 2.3 ~ 22 |
---|---|
Focal Length: | 50mm |
Format : | 2/3 |
Manufacturer: | Fujinon |
Model Type: | Fixed Focal |
Mount: | C Mount |
Product Life Cycle: | Mature Product |
Resolution : | 1.5 MP < |
Ruggedized: | -- |
