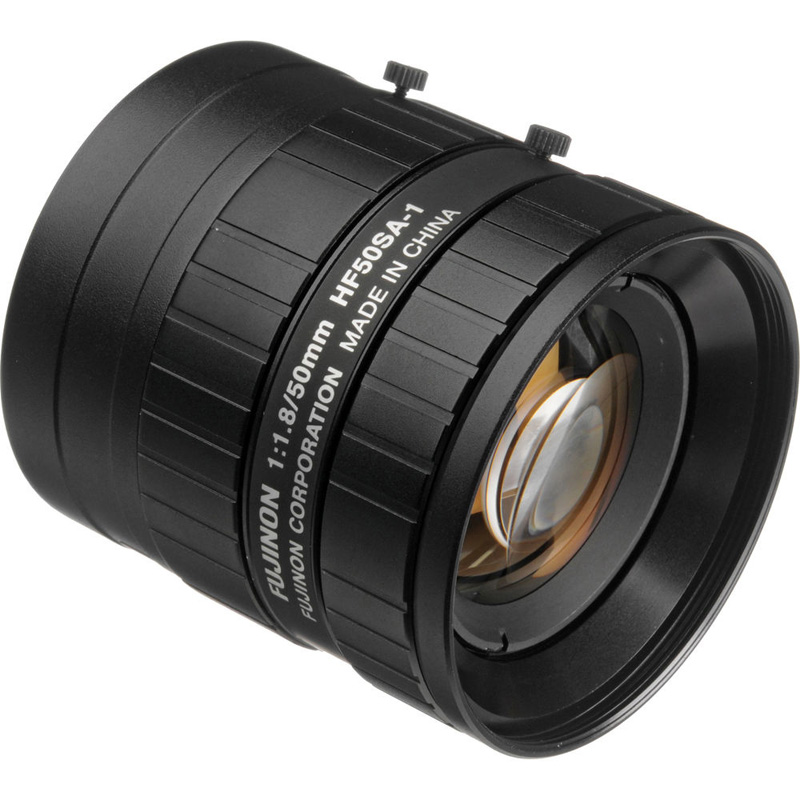

Fujinon HF50SA-1 C Mount Lens

• High Resolution design, providing support for up to 5 megapixel camera resolution.
• Wide-aperture (F1.8) design achieves clear images under low light intensity, despite the long focal distance.
• Enhanced image recognition accuracy achieved by reduction of distortion and improvement of illumination uniformity.
• Robust enclosure resistant to vibrations and shocks. Equipped with locking knobs for the iris and the focus.

Download Product PDF:

• Fujinon HF50SA-1

TECHNICAL INFORMATION:

• Focus: Manual
• Iris: Manual
• Focal Length (mm): 50
• Iris Range: F1.8 ~ F22
• Back Focal Distance (in air) (mm): 17.81
• Exit Pupil Position (From Image Plane) (mm): -49
• Filter Thread (mm): M49 x 0.75
• Mass (g): 240
• Focusing Range (From Front Of The Lens) (m): ~ 0.4 (Using an extension tube longer then 5mm will increase the M.O.D. to 0.3m.)
• Angle of View:
  2/3" - 10°03' x 7°33'
  1/2" - 7°19' x 5°30'
  1/3" - 5°30 x 4°07'
• Object Dimensions at M.O.D. (H x V) (mm):
  2/3" - 70 x 52
  1/2" - 51 x 38
  1/3" - 38 x 28
• Mount: C
