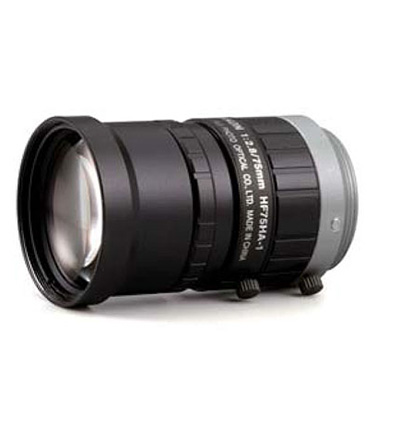

Fujinon HF75HA-1B C Mount Lens

• Design achieving the high resolution, supporting up to 1.5 mega pixel cameras.
• Designed for low distortion, enabling faithful image input.
• Compact, lightweight and robust design, supporting various systems.
• Focus & iris lock tab provided, supporting environments such as vibration.

Download Product PDF:

• Fujinon HF75HA-1B

TECHNICAL INFORMATION:

• Focus: Manual
• Iris: Manual
• Focal Length (mm): 75
• Iris Range: F2.8 ~ F22
• Back Focal Distance (in air) (mm): 15.74
• Exit Pupil Position (From Image Plane) (mm): -26.6
• Filter Thread (mm): M30.5 x 0.5
• Mass (g): 55
• Focusing Range (From Front Of The Lens) (m): ~ 1.1
• Angle of View:
  2/3" - 6°43' x 5°02'
  1/2" - 4°53' x 3°40'
  1/3" - 3°40' x 2°45'
• Object Dimensions at M.O.D. (H x V) (mm):
  2/3" - 114 x 85
  1/2" - 83 x 62
  1/3" - 62 x 47
• Mount: C
