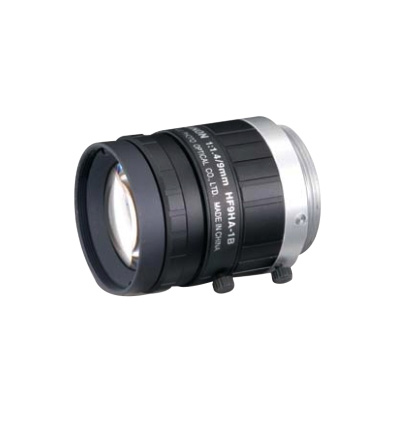

Fujinon HF9HA-1B C Mount Lens

• Design achieving the high resolution, supporting up to 1.5 mega pixel cameras.
• Designed for low distortion, enabling faithful image input.
• Compact, lightweight and robust design, supporting various systems.
• Focus & iris lock tab provided, supporting environments such as vibration.

Download Product PDF:

• Fujinon HF9HA-1B

TECHNICAL INFORMATION:

• Focus: Manual
• Iris: Manual
• Focal Length (mm): 9
• Iris Range: F1.4 ~ F16
• Back Focal Distance (in air) (mm): 13.48
• Exit Pupil Position (From Image Plane) (mm): -27.9
• Filter Thread (mm): M27 x 0.5
• Mass (g): 55
• Focusing Range (From Front Of The Lens) (m): ~ 0.1
• Angle of View:
  2/3" - 52°06' x 40°16'
  1/2" - 39°09' x 29°52'
  1/3" - 29°52' x 22°37'
• Object Dimensions at M.O.D. (H x V) (mm):
  2/3" - 108 x 81
  1/2" - 79 x 59
  1/3" - 59 x 44
• Mount: C
