Fujinon TF15DA-8 C Mount Lens

Need Help Finding the Best Lens for Your Solution? Call (631) 254-2600
Request a Quote

Get a Quote for the Fujinon TF15DA-8 C Mount Lens

Please fill out the form below to request a quote. Fields marked with * are required.

First Name: *
Last Name: *
Company: *
Email: *

The Fujinon TF15DA-8 is a very high quality C-mount lens designed for the toughest industrial environments. It is a fixed 15mm focal length lens with a maximum aperture of f/2.2. All functions, iris and focus, are manually controlled. In robotics and machine vision uses the lens can resolve enough detail for the highest grade of 3-CCD cameras. It can close-focus down to about 4".

Download Product PDF:


Focal length [mm] 15
Iris range (F. no) F2.2 - F16
Angle of view 18°×13°
Working Distance*1(mm) ∞-100
Operation of focus Manual
Operation of iris Manual
Filter thread [mm] M25.5 x 0.5
Mount C-mount


Request a Quote

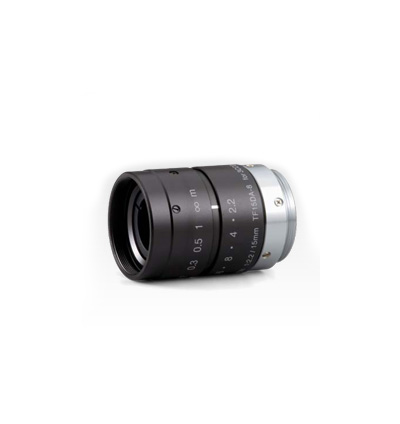

Product image of Fujinon TF15DA-8
Product Photos
Product image of  Fujinon TF15DA-8
Quick Info for the Fujinon TF15DA-8 C Mount Lens
Aperture: 2.2 ~ 16
Focal Length: 15mm
Format : 1/3
Manufacturer: Fujinon
Mount: C Mount
Resolution : 3 CCD
Ruggedized: --
