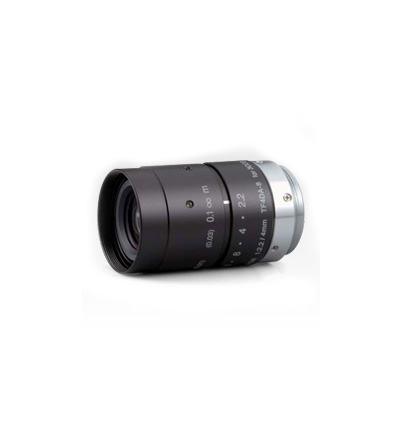

The Fujinon TF4DA-8 is a high quality fixed focal length industrial lens designed for the highest quality 3-CCD cameras. It will deilver superior images for special monitoring applications where color, contrast and resolution are all critical. The 4mm fixed focal length produces a wide angle 61° horizontal view. Even though the lens itself is light weight it has been engineered and constructed for complex, even difficult monitoring environments. This is a manual iris and manual focus lens.
Download Product PDF:
TECHNICAL INFORMATION:
| Focal length [mm] | 4 |
| Iris range (F. no) | F2.2 - F16 |
| Angle of view | 61°×48° |
| Working Distance*1(mm) | ∞-100 |
| Operation of focus | Manual |
| Operation of iris | Manual |
| Filter thread [mm] | M27 x 0.5 |
| Mount | C-mount |
| Aperture: | 2.2 ~ 16 |
|---|---|
| Focal Length: | 4mm |
| Format : | 1/3 |
| Manufacturer: | Fujinon |
| Mount: | C Mount |
| Resolution : | 3 CCD |
| Ruggedized: | -- |
