Available Variations:

  • FL-CC1218-5MX

  • FL-CC1618-5MX

  • FL-CC2518-5MX

  • FL-CC3524-5MX

5 Mega-Pixel Lens
(Manual Iris Lens, compatible with 5 mega-pixel cameras)

5MX Series uses JIIA (Japan Industrial Imaging Association) lens standards and satisfy S-Rank (Best Performance Class) criteria as high-performance lenses for 2/3 5 Megapixel camera. As entire field 5 Megapixel camera lenses, they capture high resolution, distortion images not just from the center to the periphery but over the entire measurement field.

Download Product PDF:

TECHNICAL INFORMATION:

  • Japan Industrial Imaging Association S-ranked: High MTF throughout to the edges
  • Floating focus mechanism ensures high optical performance over the focusing range from Minimum Object Distance (MOD) to infinity
  • Shorter MOD without extension rings as macro-focus lenses
  • Extremely low distortion
  • Increased accuracy of image recognition by 20% comparing with 2MP lenses according to our practical experiments at RICOH factories

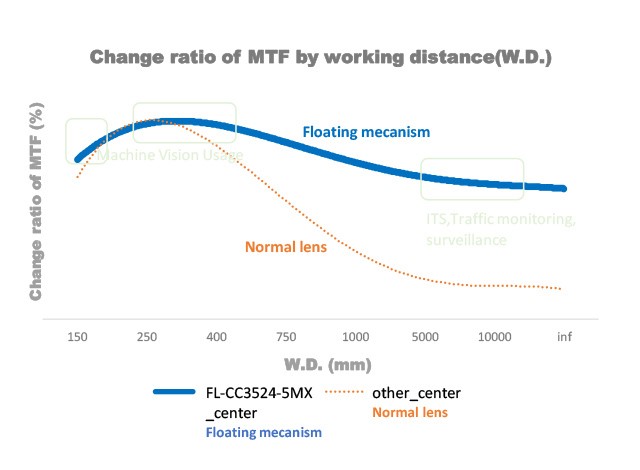

ricoh lense graph

Request a Quote

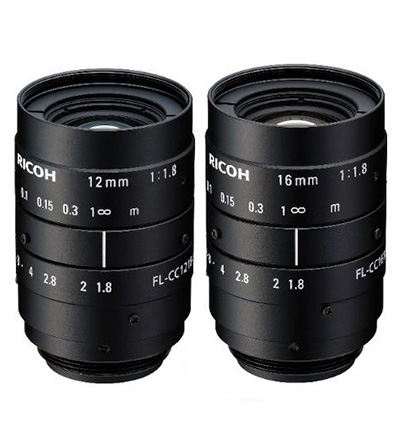

Product image of Ricoh/Pentax FL-CC-5MX
Product image of Ricoh/Pentax FL-CC-5MX
Product Photos
Product image of  Ricoh/Pentax FL-CC-5MX Product image of  Ricoh/Pentax FL-CC-5MX
Quick Info for the Ricoh/Pentax FL-CC1218-5MX C Mount Lens
Aperture: 1.8 ~ 16
Focal Length: 12mm
Format : 2/3
Manufacturer: Ricoh/Pentax
Mount: C Mount
Resolution : 5 MP
Ruggedized: No
Quick Info for the Ricoh/Pentax FL-CC1618-5MX C Mount Lens
Aperture: 1.8 ~ 16
Focal Length: 16mm
Format : 2/3
Manufacturer: Ricoh/Pentax
Mount: C Mount
Resolution : 5 MP
Ruggedized: No
Quick Info for the Ricoh/Pentax FL-CC2518-5MX C Mount Lens
Aperture: 1.8 ~ 16
Focal Length: 25mm
Format : 2/3
Manufacturer: Ricoh/Pentax
Mount: C Mount
Resolution : 5 MP
Ruggedized: No
Quick Info for the Ricoh/Pentax FL-CC3524-5MX C Mount Lens
Aperture: 2.4 ~ 16
Focal Length: 35mm
Format : 2/3
Manufacturer: Ricoh/Pentax
Mount: C Mount
Resolution : 5 MP
Ruggedized: No
