Ricoh/Pentax FL-YFL5028 F Mount Lens

Need Help Finding the Best Lens for Your Solution? Call (631) 254-2600
Request a Quote

Get a Quote for the Ricoh/Pentax FL-YFL5028 F Mount Lens

Please fill out the form below to request a quote. Fields marked with * are required.

First Name: *
Last Name: *
Company: *
Telephone:
Extension:
Email: *
Comments:

Even, high definition optical characteristics across the entire image (including the periphery)
With a design optimized for FA close-up shooting, this lens is suitable for sensors up to 45 mm

Used for inspection of steel, pulp, fibre/textile, printing, film and other flat materials and Web appearance testing equipment

  • High resolution, high contrast
  • Suitable for sensors up to 45mm
  • Abundant Light Distribution
  • Minimal distortion
  • Available in F-mount and PENTAX K mount
  • Lockable focus & iris rings

Download Product PDF:

TECHNICAL INFORMATION:

Format size 45mm Image Circle
Focal length 50 mm
Maximum aperture ratio 1:2.8
Iris range 2.8-22
Mount F-mount (bayonet mount) FL-YFL5028
Minimum object distance 0.25 m (Magnification: 0.5x)
Back focal length 36.99 mm
Filter size 62 P=0.75 mm
Dimensions φ72×56.8 mm(FL-YFL3528
Min.~Max.
Magnification
∞ ·0.5X
Weight 370 g
Remarks Focus: Lock Screw Iris: Click stop.
Not for photographic cameras.



Request a Quote

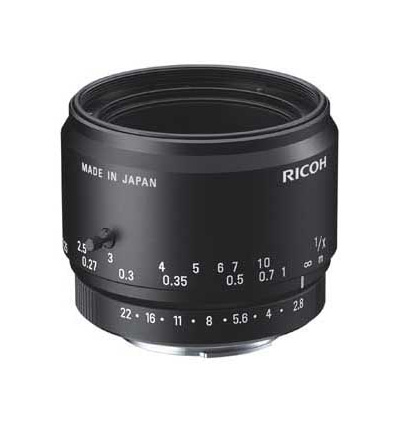

Product image of Ricoh/Pentax FL-YFL5028
Product Photos
Product image of  Ricoh/Pentax FL-YFL5028
Quick Info for the Ricoh/Pentax FL-YFL5028 F Mount Lens
Aperture: 2.8 ~ 22
Focal Length: 50mm
Format : 45mm
Manufacturer: Ricoh/Pentax
Mount: F Mount
Resolution : Line Scan
Ruggedized: --
