Specifically designed for factory automation and machine vision applications, Tamron's 23FM12 2/3 12mm F/1.8 lens features a solid construction to endure long periods of use in vibrating conditions encountered in a factory automation environment. Compact in size, this high resolution lens is designed to fit today's machinery dimensions and uses superior optics to maintain sharp clarity in a focusing range of less than 0.3m

Download Product PDF:

TECHNICAL INFORMATION:

  • Focal Length: 12mm
  • Iris Range: F/1.8 - 16
  • Iris Operation: Manual
  • Focus Operation: Manual
  • Mount: C
  • 1/3" Angle of View: 22.4° x 16.6°
  • 1/2" Angle of View: 30.0° x 22.4°
  • 2/3" Angle of View: 40.9°x 30.9°
  • Effective Diameter (Front/Rear Lens): Ø11.7mm/Ø8.0mm
  • Minimum Object Distance: 10.2 in. (0.26m)
  • Back Focus: 11.03mm (in air)
  • Filter Size: M25.5 P=0.5
  • Maximum Diameter: ø1.1 in. (ø29mm)
  • Overall Length: 1.1 in. (27mm)
  • Weight: 1.4 oz. (40 grams)

Request a Quote

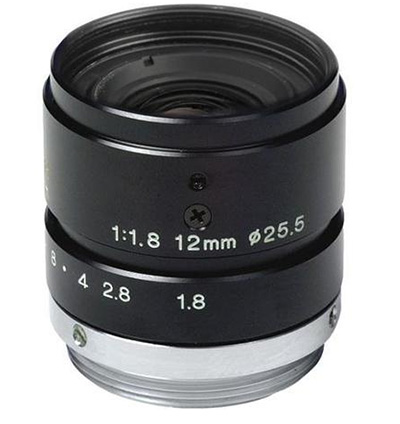

Product image of Tamron 23FM12
Product Photos
Product image of Tamron 23FM12
Quick Info for the Tamron 23FM12 C Mount Lens
Aperture: 1.8 ~ 16
Focal Length: 12mm
Format : 2/3
Manufacturer: Tamron
Model Type: Fixed Focal
Mount: C Mount
Product Life Cycle: Mature Product
Resolution : 1.5 MP <
Ruggedized: --
