Designed for factory automation and machine vision applications Tamron's 23FM16L 2/3 16mm F/1.4 lens utilizes a screw mechanism to lock-in the focus and iris rings and is ideal for use in environments experiencing significant vibrations. Compact in size with a solid built mechanism, this high resolution lens needs only a distance of 0.3m to achieve sharp image clarity and maintains optimum performance under long periods of use.

Download Product PDF:

TECHNICAL INFORMATION:

  • Focal Length: 16mm
  • Iris Range: F/1.4 - 16
  • Iris Operation: Manual w/lock
  • Focus Operation: Manual w/lock
  • Mount: C
  • 1/3" Angle of View: 16.9° x 12.7°
  • 1/2" Angle of View: 22.5° x 16.9°
  • 2/3" Angle of View: 30.9°x 23.2°
  • Effective Diameter (Front/Rear Lens): Ø11.5mm/Ø11.5mm
  • Minimum Object Distance: 11.4 in. (0.29m)
  • Back Focus: 11.85mm (in air)
  • Filter Size: M25.5 P=0.5
  • Maximum Diameter: ø1.2 in. (ø30mm)
  • Overall Length: 1.0 in. (25mm)
  • Weight: 2.7 oz. (48 grams)

Request a Quote

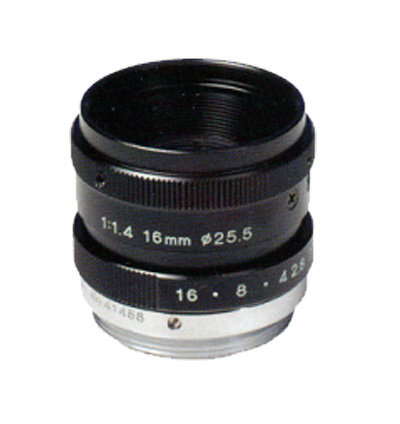

Product image of Tamron 23FM16L
Product Photos
Product image of Tamron 23FM16L
Quick Info for the Tamron 23FM16L C Mount Lens
Aperture: 1.4 ~ 16
Focal Length: 16mm
Format : 2/3
Manufacturer: Tamron
Model Type: Fixed Focal
Mount: C Mount
Product Life Cycle: Mature Product
Resolution : 1.5 MP <
Ruggedized: --
