Designed for use with 1.3 and higher megapixel cameras, Tamron's 23FM16SP lens employs superior optics to provide outstanding corner to corner performance while thoroughly compensating for minimal distortion. With a minimum focusing range of less than 015m, this lens is particularly suited for use with machine vision and pharmaceuticals or for similar applications requiring highly detailed close-up image capture.

Download Product PDF:

TECHNICAL INFORMATION:

  • Focal Length: 16mm
  • Iris Range: F/1.4 - 22
  • Iris Operation: Manual w/lock
  • Focus Operation: Manual w/lock
  • Mount: C
  • 1/3" Angle of View: 17.1° x 12.9°
  • 1/2" Angle of View: 22.7° x 17.1°
  • 2/3" Angle of View: 30.9°x 23.4 °
  • Effective Diameter (Front/Rear Lens): Ø17.5mm/Ø13.0mm
  • Minimum Object Distance: 0.15m
  • Back Focus: 11.54mm (in air)
  • Filter Size: M30.5 P=0.5
  • Maximum Diameter: ø34mm
  • Overall Length: 38mm
  • Weight: 80g

Request a Quote

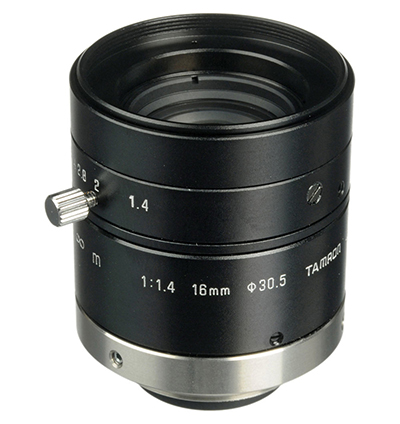

Product image of Tamron 23FM16SP
Product Photos

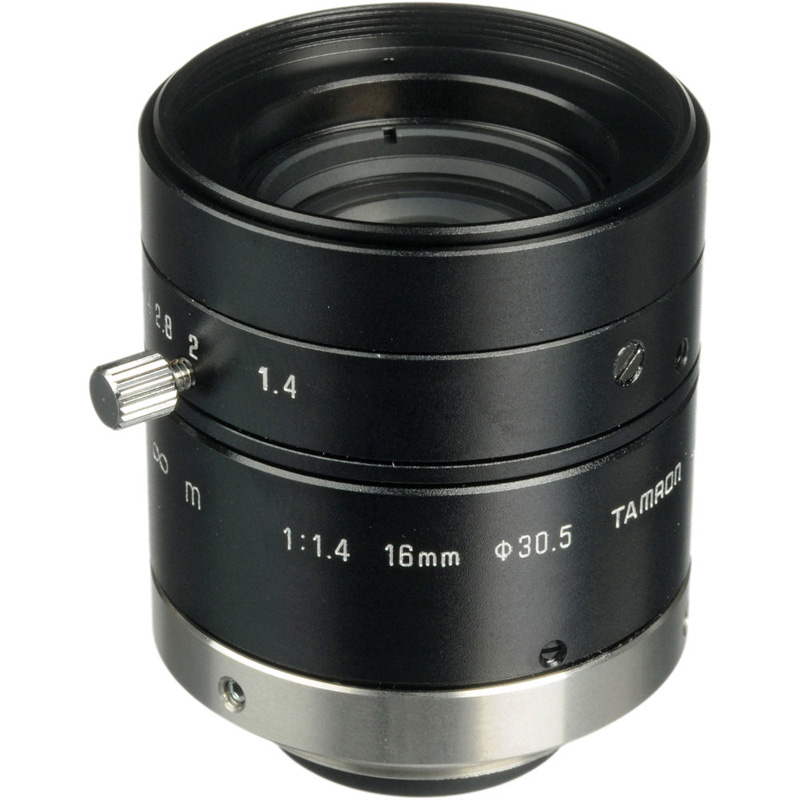

Product image of Tamron 23FM16SP
Quick Info for the Tamron 23FM16SP C Mount Lens
Aperture: 1.4 ~ 22
Focal Length: 16mm
Format : 2/3
Manufacturer: Tamron
Model Type: Fixed Focal
Mount: C Mount
Product Life Cycle: Mature Product
Resolution : 1.5 MP <
Ruggedized: --
