Tamron 23FM50SP C Mount Lens

Need Help Finding the Best Lens for Your Solution? Call (631) 254-2600
Request a Quote

Get a Quote for the Tamron 23FM50SP C Mount Lens

Please fill out the form below to request a quote. Fields marked with * are required.

First Name: *
Last Name: *
Company: *
Email: *

Designed for use with 1.3 Megapixel cameras and higher, the Tamron 23FM50SP lens incorporates advanced optical techniques to achieve high resolution with zero amount of distortion. Using the latest in optical design, this lens maintains superb performance in a minimum focusing distance of just 0.20m and is small enough to ensure compatible fit with today's automated machinery.

Download Product PDF:


  • Focal Length: 50mm
  • Iris Range: F/2.8 - 22
  • Iris Operation: Manual w/Lock
  • Focus Operation: Manual w/Lock
  • Mount: C
  • 1/3" Angle of View (wide/telephoto): 5.5° x 4.1°
  • 1/2" Angle of View (wide/telephoto): 7.3° x 5.5°
  • 2/3" Angle of View (wide/telephoto): 10.1°x 7.6 °
  • Effective Diameter (Front/Rear Lens): Ø18.5mm/Ø14.9mm
  • Minimum Object Distance: 0.20m
  • Back Focus: 34.46mm (in air)
  • Filter Size: M30.5 P=0.5
  • Maximum Diameter: ø34mm
  • Overall Length: 77.5mm
  • Weight: 117g

Request a Quote

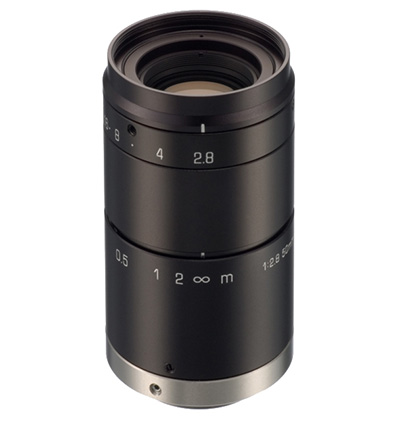

Product image of Tamron 23FM50SP
Product Photos
Product image of  Tamron 23FM50SP
Quick Info for the Tamron 23FM50SP C Mount Lens
Aperture: 2.8 ~ 32
Focal Length: 50mm
Format : 2/3
Manufacturer: Tamron
Model Type: Fixed Focal
Mount: C Mount
Product Life Cycle: Mature Product
Resolution : 1.5 MP <
Ruggedized: --
