Tamron 23FM65 C Mount Lens

Need Help Finding the Best Lens for Your Solution? Call (631) 254-2600
Request a Quote

Get a Quote for the Tamron 23FM65 C Mount Lens

Please fill out the form below to request a quote. Fields marked with * are required.

First Name: *
Last Name: *
Company: *
Telephone:
Extension:
Email: *
Comments:

Built for factory automation and machine vision applications, Tamron's 23FM65 lens features a solid mechanism able to withstand long periods of use in an environment experiencing significant vibrations. Utilizing superior optics in a compact size, this high resolution lens is designed to fit today's machinery dimensions and needs only a minimum object distance of 0.15m to achieve outstanding image clarity.

Download Product PDF:

TECHNICAL INFORMATION:

  • Focal Length: 6.5mm
  • Iris Range: F/1.8 - Close
  • Iris Operation: Manual
  • Focus Operation: ----
  • Mount: C
  • 1/3" Angle of View: 41.0° x 31.0°
  • 1/2" Angle of View: 53.9° x 41.0°
  • 2/3" Angle of View: 71.6° x 55.5°
  • Effective Diameter (Front/Rear Lens): Ø24.8mm/Ø10.8mm
  • Minimum Object Distance: 5.9 in. (0.15m)
  • Back Focus: 13.0mm (in air)
  • Filter Size: ----
  • Maximum Diameter: ø1.5 in. (ø37mm)
  • Overall Length: 1.2 in. (31.5mm)
  • Weight: 2.1 oz. (60 grams)

Request a Quote

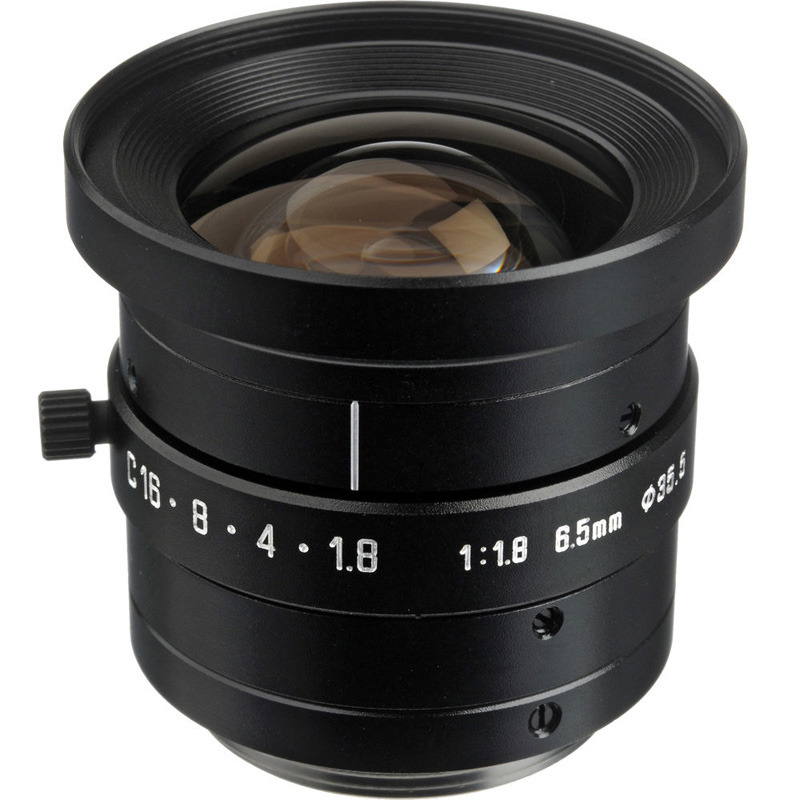

Product image of Tamron 23FM65
Product Photos

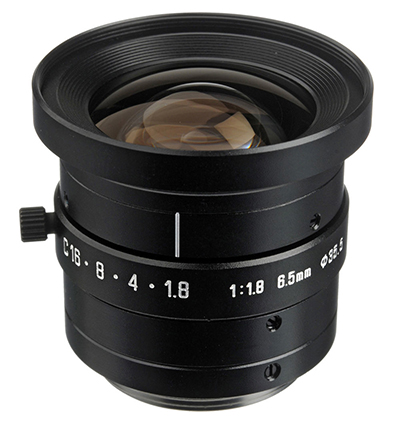

Product image of Tamron 23FM65
Quick Info for the Tamron 23FM65 C Mount Lens
Aperture: 1.8 ~ 16
Focal Length: 6.5mm
Format : 2/3
Manufacturer: Tamron
Model Type: Fixed Focal
Mount: C Mount
Product Life Cycle: Mature Product
Resolution : 1.5 MP <
Ruggedized: --
