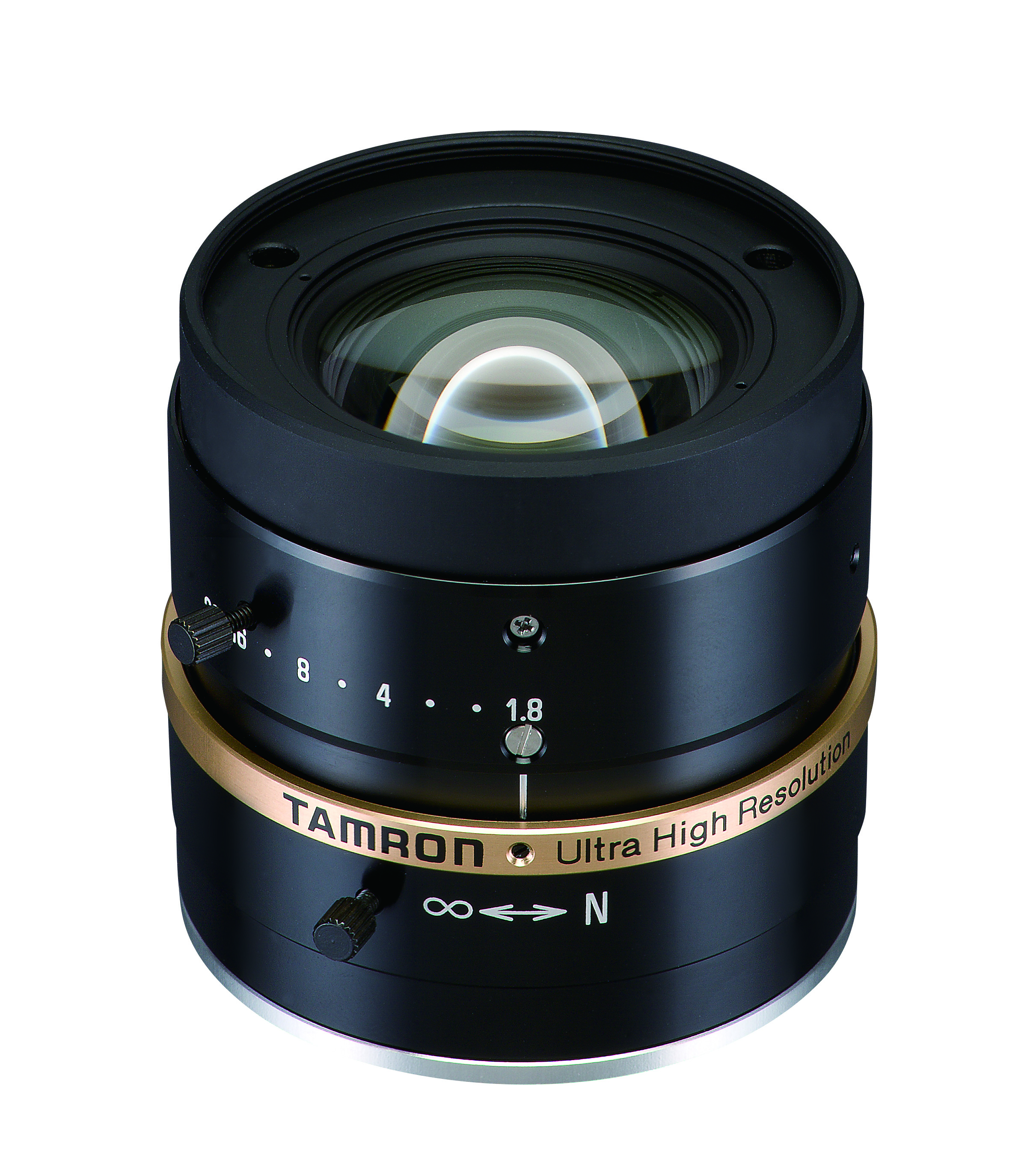

Tamron M23FM08 C Mount Lens

2/3”8mm F/1.8 Ultra High Resolution 2.5um Pitch Sensors Lens

As part of an ongoing initiative to address this need, Tamron has released 7 models specifically for use with 2/3" 2.um pitch size sensor cameras. By this new lineup, Tamron’s dedication to meeting customer requirements will be further realized.

Ultra High Resolution

• Designed to match pixel pitch 2.5? sensors. Realize high resolution from center to periphery (image height 90%).
• MOD 10cm (6, 8, 12, 16, 25mm), 15cm (35, 50mm).
• Low distortion.
• 6 iris blades maintain same performance as 8 blades through a unique iris blade design.

High Durability

• Optimized focus lock screws for each focal length design.
• Metal mount and components for high durability.
• Vibration and shock resistant design maintains the initial optical performance.

High Versatility

• Newly designed mechanics enable the focus rotation to be larger and reduces troublesome focus adjustment.
• Designed to fix the mechanical length of the lens.

TECHNICAL INFORMATION:

• Imager Size: 2/3
• Mount: C
• Focal Length: 8mm
• Aperture Range: F/1.8~22
• Field of View(HxV)
  2/3: 58.5^ox 45.1^o
  1/2: 43.8^ox 33.3^o
  1/3: 33.3^ox 25.2^o
• Focusing Range: 0.1m~∞
• Operation
  Focus: Manual with Lock Screw
  Iris: Manual with Lock Screw
• Filter Size: M52 P=0.75
• Corresponding Wavelength: Visible Light
