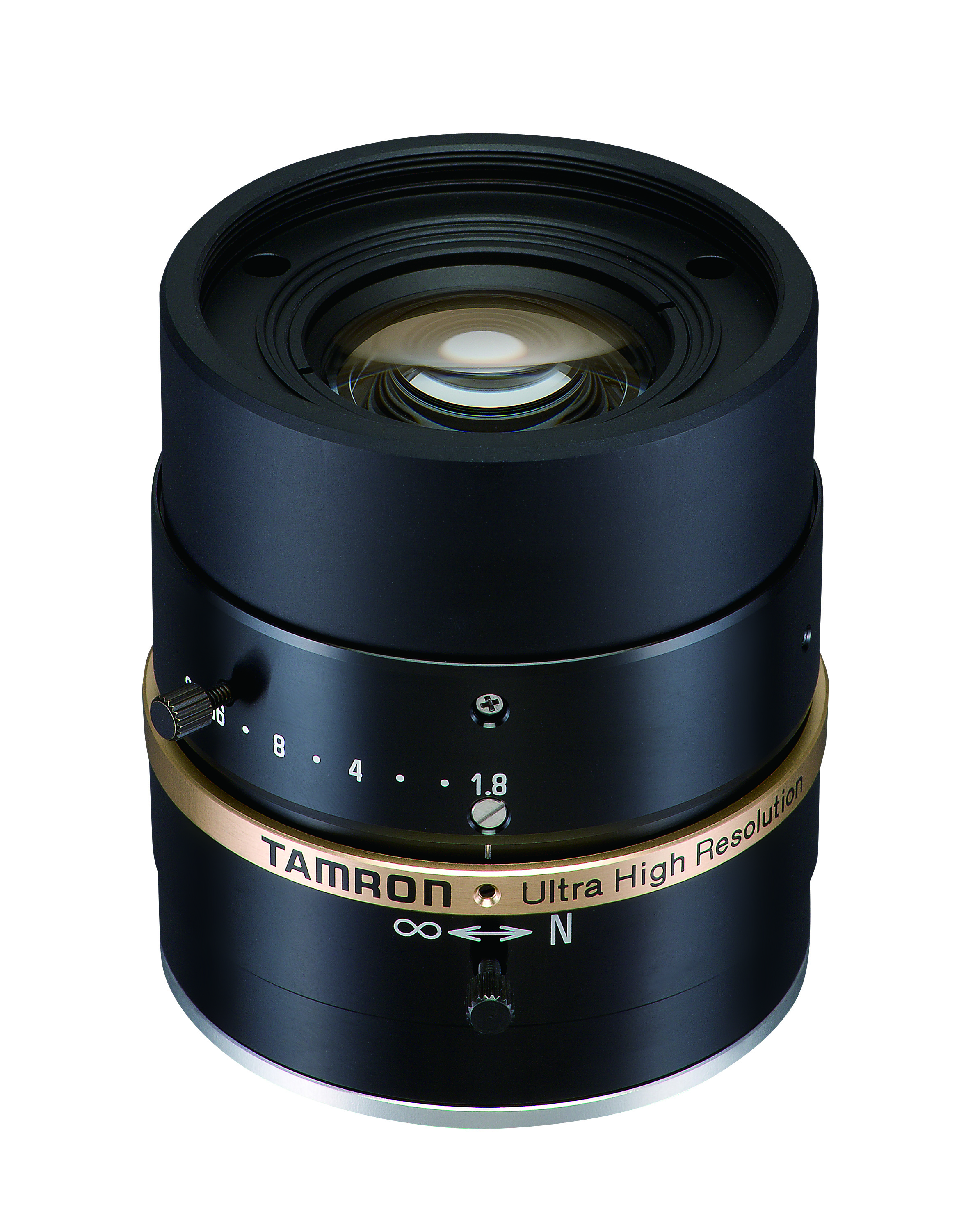

Tamron M23FM12 C Mount Lens
Need Help Finding the Best Lens for Your Solution? Call (631) 254-2600
Request a Quote
Get a Quote for the Tamron M23FM12 C Mount Lens
Please fill out the form below to request a quote. Fields marked with * are required.
2/3” 12mm F/1.8 Ultra High Resolution 2.5um Pitch Sensors Lens
Tamron has been long recognized as an innovative source for Mega-Pixel Fixed-Focal length lenses for precision industrial applications such as PCB production, inspection machines and engineering devices, affording them valuable insight into industry needs and trends. Trending higher in recent years and growing rapidly is the demand for substantially higher-resolution cameras, requiring exacting, task-specific optics.
As part of an ongoing initiative to address this need, Tamron has released 7 models specifically for use with 2/3" 2.um pitch size sensor cameras. By this new lineup, Tamron’s dedication to meeting customer requirements will be further realized.
Ultra High Resolution
- Designed to match pixel pitch 2.5? sensors. Realize high resolution from center to periphery (image height 90%).
- MOD 10cm (6, 8, 12, 16, 25mm), 15cm (35, 50mm).
- Low distortion.
- 6 iris blades maintain same performance as 8 blades through a unique iris blade design.
- Optimized focus lock screws for each focal length design.
- Metal mount and components for high durability.
- Vibration and shock resistant design maintains the initial optical performance.
- Newly designed mechanics enable the focus rotation to be larger and reduces troublesome focus adjustment.
- Designed to fix the mechanical length of the lens.
- Imager Size: 2/3
- Mount: C
- Focal Length: 12mm
- Aperture Range: F/1.8~22
- Field of View(HxV)
2/3: 40.5ox 30.9o
1/2: 30.0ox 22.7o
1/3: 22.7ox 17.1o
- Focusing Range: 0.1m~∞
Focus: Manual with Lock Screw
Iris: Manual with Lock Screw
- Filter Size: M49 P=0.75
- Corresponding Wavelength: Visible Light
