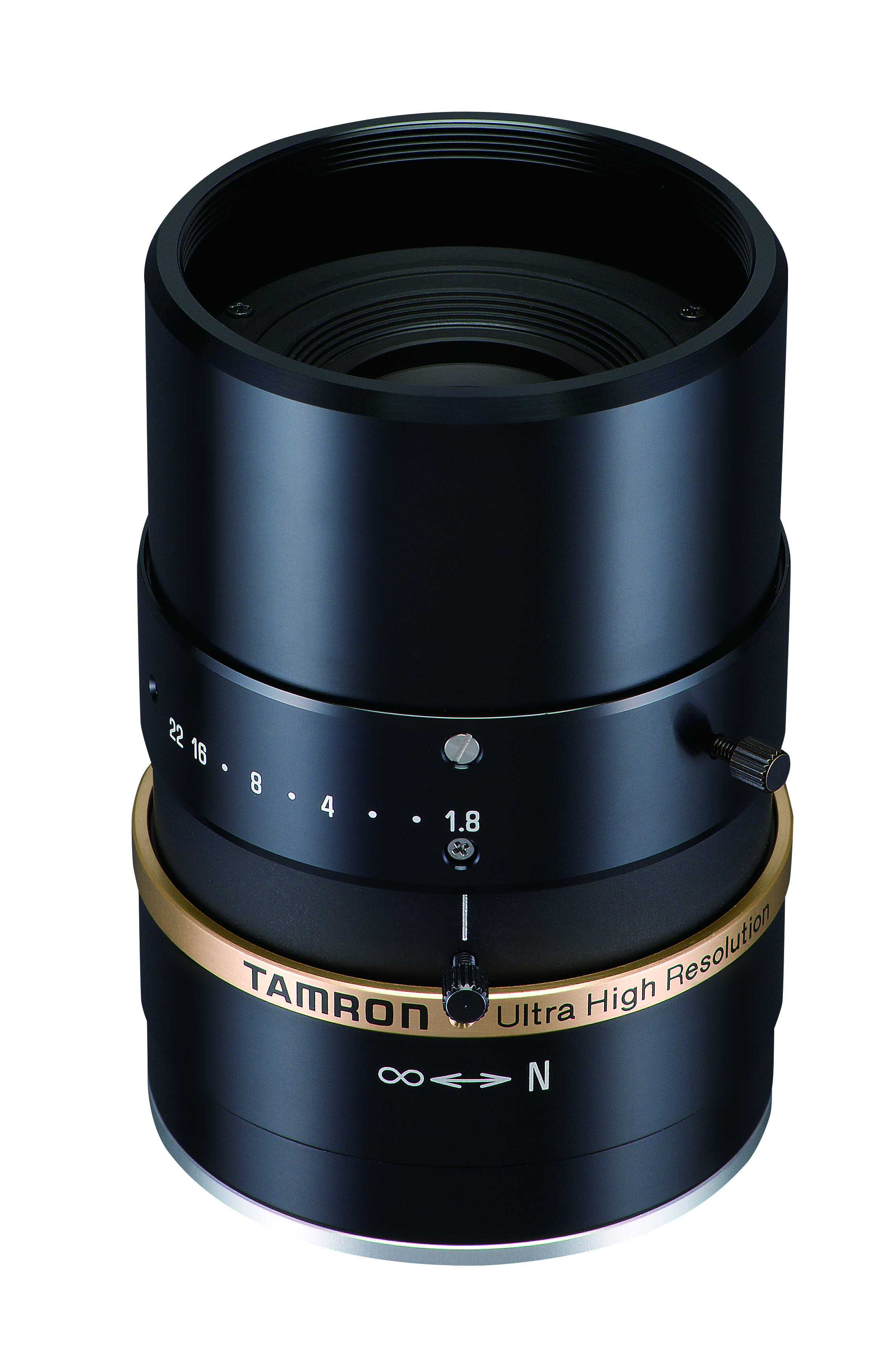

Tamron M23FM25 C Mount Lens
Get a Quote for the Tamron M23FM25 C Mount Lens
Please fill out the form below to request a quote. Fields marked with * are required.
2/3” 25mm F/1.8 Ultra High Resolution 2.5um Pitch Sensors Lens
As part of an ongoing initiative to address this need, Tamron has released 7 models specifically for use with 2/3" 2.um pitch size sensor cameras. By this new lineup, Tamron’s dedication to meeting customer requirements will be further realized.
Ultra High Resolution
- Designed to match pixel pitch 2.5? sensors. Realize high resolution from center to periphery (image height 90%).
- MOD 10cm (6, 8, 12, 16, 25mm), 15cm (35, 50mm).
- Low distortion.
- 6 iris blades maintain same performance as 8 blades through a unique iris blade design.
- Optimized focus lock screws for each focal length design.
- Metal mount and components for high durability.
- Vibration and shock resistant design maintains the initial optical performance.
- Newly designed mechanics enable the focus rotation to be larger and reduces troublesome focus adjustment.
- Designed to fix the mechanical length of the lens.
- Imager Size: 2/3
- Mount: C
- Focal Length: 25mm
- Aperture Range: F/1.8~22
- Field of View(HxV)
2/3: 20.1ox 15.1o
1/2: 14.6ox 11.0o
1/3: 11.0ox 8.2o
- Focusing Range: 0.1m~∞
Focus: Manual with Lock Screw
Iris: Manual with Lock Screw
- Filter Size: M49 P=0.75
- Corresponding Wavelength: Visible Light
