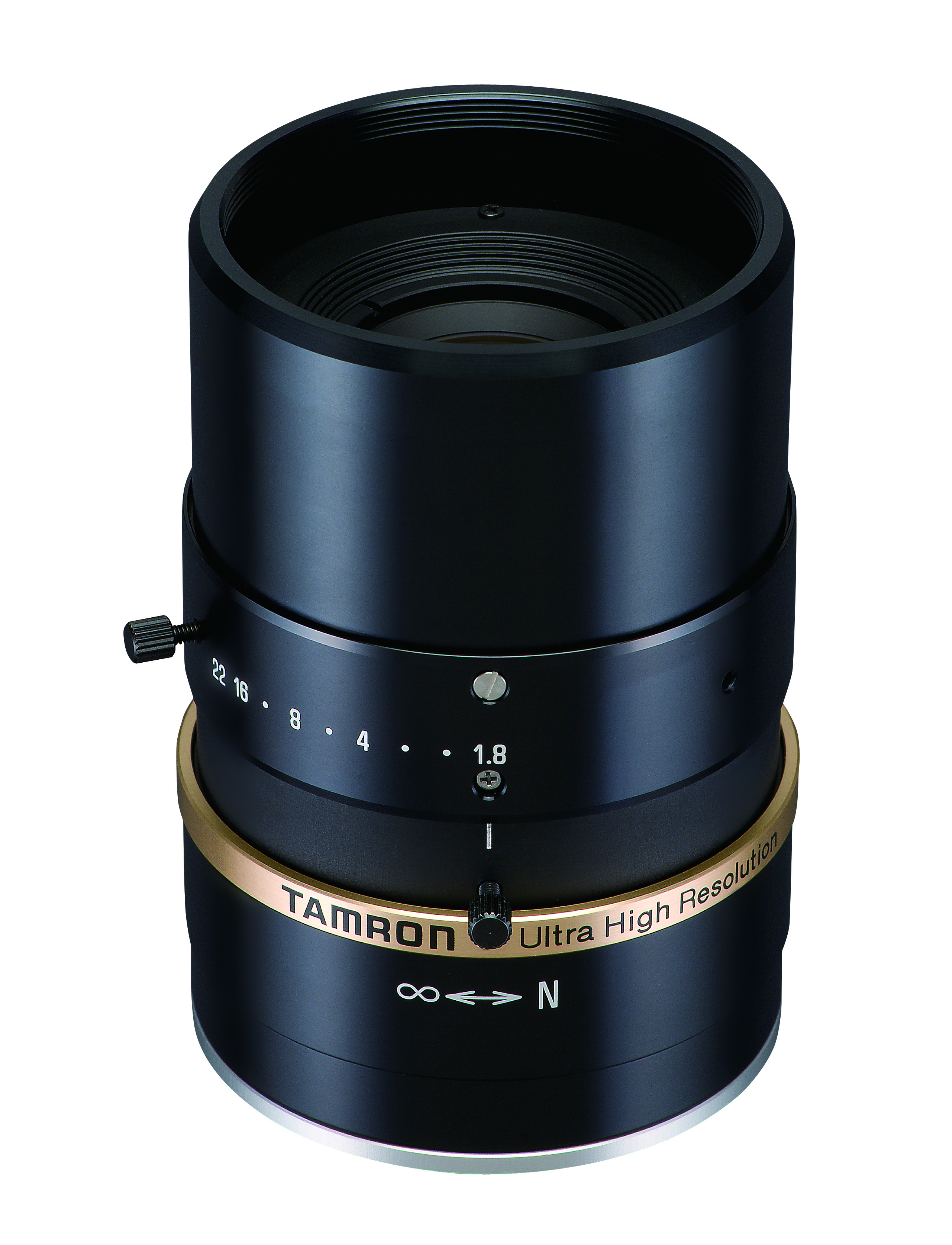

Tamron M23FM35 C Mount Lens
Need Help Finding the Best Lens for Your Solution? Call (631) 254-2600
Request a Quote
Get a Quote for the Tamron M23FM35 C Mount Lens
Please fill out the form below to request a quote. Fields marked with * are required.
2/3” 35mm F/1.8 Ultra High Resolution 2.5um Pitch Sensors Lens
TAMRON M23FM35 2/3" 35MM F1.8 MANUAL IRIS C-MOUNT LENS, 6 MEGAPIXEL RATED
Low Distortion, Designed for Resolving Images on 2.5 µm Size Sensors.
FEATURES
Ultra High Resolution
- Designed to match pixel pitch 2.5? sensors. Realize high resolution from center to periphery (image height 90%).
- MOD 10cm (6, 8, 12, 16, 25mm), 15cm (35, 50mm).
- Low distortion.
- 6 iris blades maintain same performance as 8 blades through a unique iris blade design.
High Durability
- Optimized focus lock screws for each focal length design.
- Metal mount and components for high durability.
- Vibration and shock resistant design maintains the initial optical performance.
High Versatility
- Newly designed mechanics enable the focus rotation to be larger and reduces troublesome focus adjustment.
- Designed to fix the mechanical length of the lens.
TECHNICAL INFORMATION:
- Imager Size: 2/3
- Mount: C
- Focal Length: 35mm
- Aperture Range: F/1.8~22
- Field of View(HxV)
2/3: 14.4o x 10.8o
1/2: 10.5o x 7.8o
1/3: 7.8o x 5.9o - Focusing Range: 0.15m~∞
- Operation
Focus: Manual with Lock Screw
Iris: Manual with Lock Screw - Filter Size: M49 P=0.75
- Corresponding Wavelength: Visible Light
