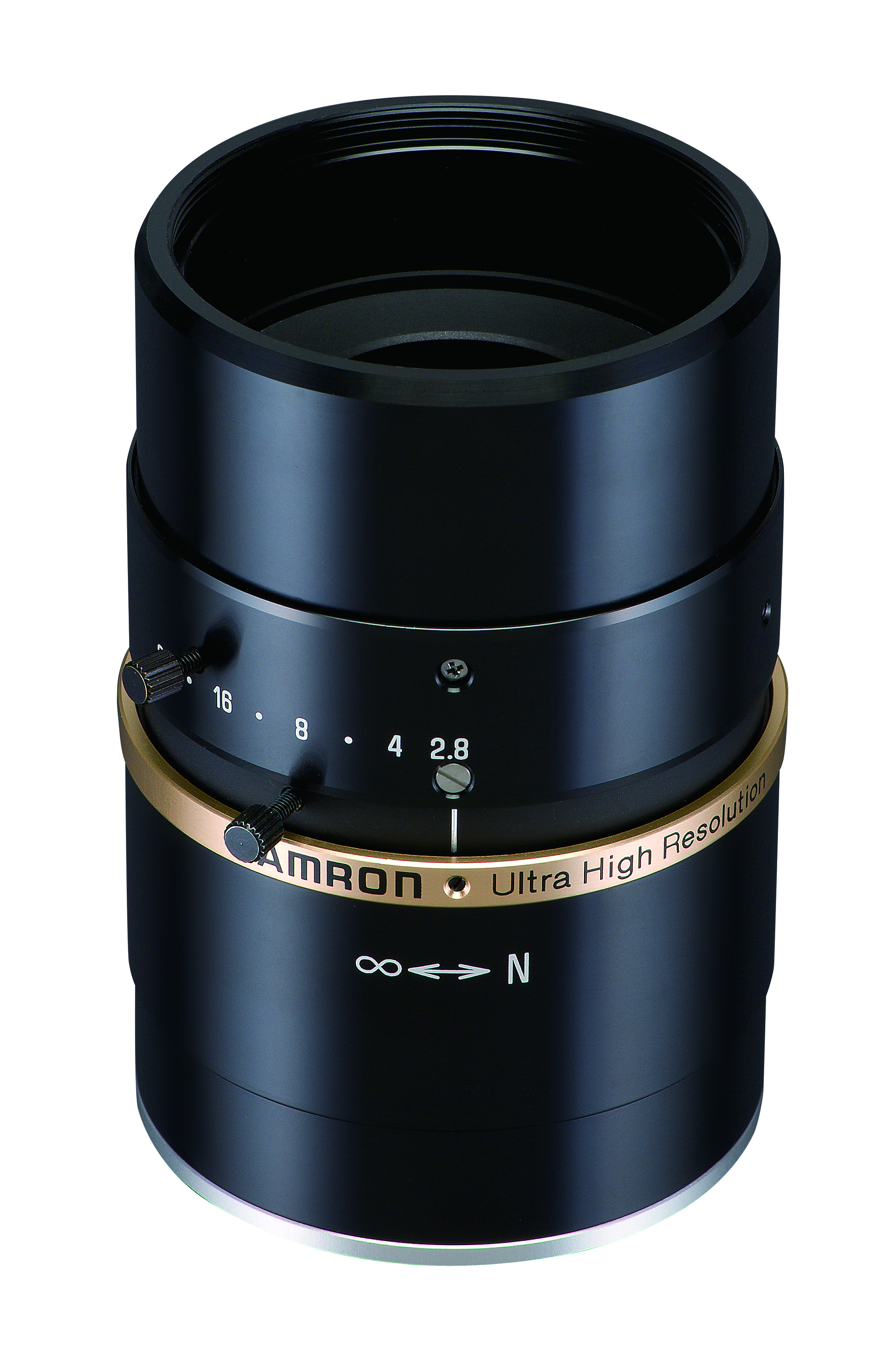

Tamron M23FM50 C Mount Lens
Need Help Finding the Best Lens for Your Solution? Call (631) 254-2600
Request a Quote
Get a Quote for the Tamron M23FM50 C Mount Lens
Please fill out the form below to request a quote. Fields marked with * are required.
2/3” 50mm F/1.8 Ultra High Resolution 2.5um Pitch Sensors Lens
TAMRON M23FM50 2/3" 50MM F2.8 MANUAL IRIS C-MOUNT LENS, 6 MEGAPIXEL RATED
Low Distortion, Designed for Resolving Images on 2.5 µm Size Sensors.
As part of an ongoing initiative to address this need, Tamron has released 7 models specifically for use with 2/3" 2.um pitch size sensor cameras. By this new lineup, Tamron’s dedication to meeting customer requirements will be further realized.
FEATURES
Ultra High Resolution
- Designed to match pixel pitch 2.5? sensors. Realize high resolution from center to periphery (image height 90%).
- MOD 10cm (6, 8, 12, 16, 25mm), 15cm (35, 50mm).
- Low distortion.
- 6 iris blades maintain same performance as 8 blades through a unique iris blade design.
High Durability
- Optimized focus lock screws for each focal length design.
- Metal mount and components for high durability.
- Vibration and shock resistant design maintains the initial optical performance.
High Versatility
- Newly designed mechanics enable the focus rotation to be larger and reduces troublesome focus adjustment.
- Designed to fix the mechanical length of the lens.
TECHNICAL INFORMATION:
- Imager Size: 2/3
- Mount: C
- Focal Length: 50mm
- Aperture Range: F/1.8~22
- Field of View(HxV)
2/3: 10.1o x 7.6o
1/2: 7.3o x 5.5o
1/3: 5.5o x 4.1o - Focusing Range: 0.15m~∞
- Operation
Focus: Manual with Lock Screw
Iris: Manual with Lock Screw - Filter Size: M49 P=0.75
- Corresponding Wavelength: Visible Light
