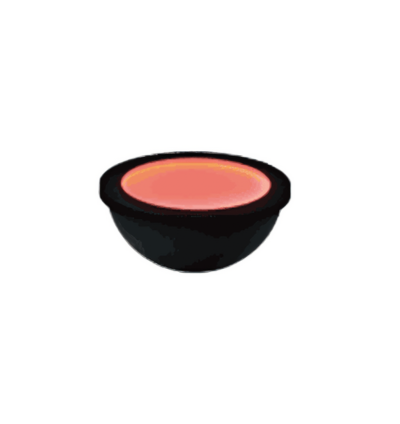

HPD2-200

The HPD2-200 is a high-power dome light designed for precision illumination in wide-area inspection tasks. Featuring an outer diameter of 216 mm and an inner aperture of 166 mm, this unit provides uniform, shadow-free lighting ideal for imaging large or reflective objects. Its dome-shaped geometry ensures diffused, even light distribution across the target surface, minimizing contrast issues caused by surface irregularities. Built to support demanding machine vision applications, the HPD2-200 delivers reliable, high-intensity performance in a compact and easy-to-integrate form factor.

TECHNICAL INFORMATION:

The HPD2-200 is an LED dome light optimized for applications requiring high-output, non-directional illumination over expansive fields of view. Emitting light at a peak wavelength of 635 nm, it supports effective imaging for objects with challenging surface characteristics such as gloss, curvature, or texture variations.

LED Color: Variety
Peak Wavelength: 635 nm (typical)
Dimensions: Ø216 mm (outer), Ø166 mm (inner), Height: 107 mm
Input Voltage: 24 VDC
Power Consumption: 34 W (max.)
Polarity & Signal: Pin 1: (+), Pin 2: NC, Pin 3: (−)
Cable Length: 300 mm
Input Connector: SMR-03V-B
Case Material: Aluminum alloy, Resin
Cooling Method: Natural air cooling
Weight: 460 g (max.)

Environmental Specifications
Operating Temperature & Humidity: 0 to 40°C; 20 to 85% RH (non-condensing)
Storage Temperature & Humidity: -20 to 60°C; 20 to 85% RH (non-condensing)

Certifications & Standards
Compliance: CE, UKCA, RoHS
Photobiological Safety: IEC 62471 (Exempt Group)

Included Accessories
User Manual
