HPD2-250

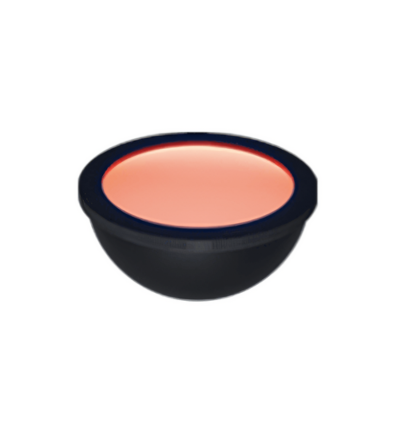

The HPD2-250 is a high-power LED dome light engineered for wide-field uniform illumination in advanced inspection environments. With an outer diameter of 266 mm and a spacious 210 mm inner aperture, it is well-suited for imaging large or irregularly shaped workpieces. Its dome-shaped reflective interior delivers diffused, shadow-free lighting, ideal for minimizing glare on reflective or textured surfaces. The robust construction and even illumination profile make the HPD2-250 an excellent fit for demanding machine vision tasks in automotive, electronics, and packaging inspection.

TECHNICAL INFORMATION:

The HPD2-250 is a high-intensity dome light designed to deliver uniform illumination for large-area machine vision applications. Emitting at a typical peak wavelength of 635 nm, the unit ensures excellent contrast and diffuse lighting for reflective or curved surfaces, reducing shadows and specular reflections that can interfere with image processing. Its large-format design, measuring 266 mm in outer diameter and 210 mm in inner diameter, accommodates sizable workpieces and complex geometries.

LED Color: Variety
Peak Wavelength: 635 nm (typical)
Dimensions: Ø266 mm (outer), Ø210 mm (inner), Height: 131.5 mm
Input Voltage: 24 VDC
Power Consumption: 45 W (max.)
Polarity & Signal: Pin 1: (+), Pin 2: NC, Pin 3: (−)
Cable Length: 300 mm
Input Connector: SMR-03V-B
Case Material: Aluminum alloy, Resin
Cooling Method: Natural air cooling
Weight: 650 g

Environmental Specifications
Operating Temperature & Humidity: 0 to 40°C; 20 to 85% RH (non-condensing)
Storage Temperature & Humidity: -20 to 60°C; 20 to 85% RH (non-condensing)

Certifications & Standards
Compliance: CE, UKCA, RoHS
Photobiological Safety: IEC 62471 (Exempt Group)

Included Accessories
User Manual
