LDR2-32

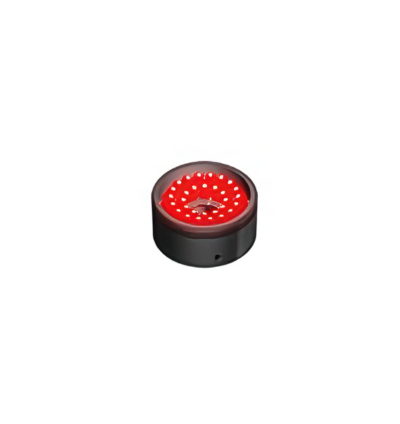

The LDR2-32 compact ring light emits light and is engineered for precision applications requiring focused, direct illumination. With an outer diameter of 32 mm, an inner diameter of 10 mm, and a height of 16 mm, its small footprint makes it ideal for tight integration into space-constrained inspection systems. The design allows for uniform illumination around small workpieces, enhancing edge contrast and minimizing shadows in high-accuracy imaging setups.

TECHNICAL INFORMATION:

The LDR2-32 is a compact LED ring light designed for high-precision imaging in constrained spaces, offering direct illumination ideal for small workpieces.

• LED Color: Variety


• Peak Wavelength: 630 nm (typical)


• Dimensions: Ø32 mm (outer), Ø10 mm (inner), Height: 16 mm


• Input Voltage: 24 VDC


• Power Consumption: 1.6 W (max.)


• Polarity & Signal: Pin 1: (+), Pin 2: NC, Pin 3: (−)


• Cable Length: 300 mm


• Input Connector: SMR-03V-B


• Case Material: Aluminum alloy


• Cooling Method: Natural air cooling


• Weight: 30 g

Environmental Specifications

• Operating Temperature & Humidity: 0 to 40°C; 20 to 85% RH (non-condensing)


• Storage Temperature & Humidity: -20 to 60°C; 20 to 85% RH (non-condensing)

Certifications & Standards

• Compliance: CE, UKCA, RoHS


• Photobiological Safety: IEC 62471 (Exempt Group)

Included Accessories

• Handling Precautions documentation

The LDR2-32 delivers reliable, high-intensity illumination in a lightweight and low-profile form factor, supporting stable machine vision performance in limited-space installations.
