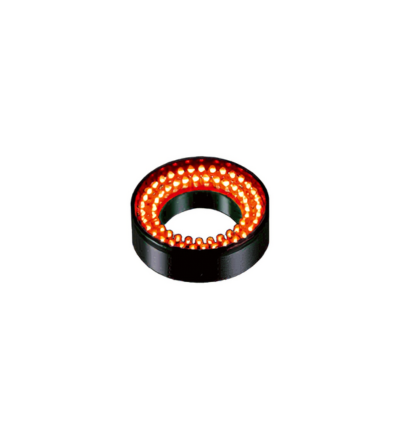

LDR2-50

The LDR2-50 is a precision-engineered LED ring light designed for machine vision applications requiring uniform, direct illumination. With an outer diameter of 50 mm, an inner diameter of 28 mm, and a height of 16 mm, this compact unit is ideal for illuminating medium-sized workpieces in automated inspection systems. Its optimized geometry ensures consistent lighting intensity toward the center of the field of view, helping to reduce shadows and highlight subtle surface details. The low-profile housing makes it easy to integrate into space-constrained setups, while its robust construction supports long-term, stable performance.

TECHNICAL INFORMATION:

The LDR2-50 is a mid-sized LED ring light designed for stable, direct illumination in precision imaging environments, ideal for medium-format workpieces and general-purpose machine vision applications.

LED Color: Variety
Peak Wavelength: 630 nm (typical)
Dimensions: Ø50 mm (outer), Ø28 mm (inner), Height: 16 mm
Input Voltage: 24 VDC
Power Consumption: 3.1 W (max.)
Polarity & Signal: Pin 1: (+), Pin 2: NC, Pin 3: (−)
Cable Length: 300 mm
Input Connector: SMR-03V-B
Case Material: Aluminum alloy
Cooling Method: Natural air cooling
Weight: 50 g (max.)

Environmental Specifications
Operating Temperature & Humidity: 0 to 40°C; 20 to 85% RH (non-condensing)
Storage Temperature & Humidity: -20 to 60°C; 20 to 85% RH (non-condensing)

Certifications & Standards
Compliance: CE, UKCA, RoHS
Photobiological Safety: IEC 62471 (Exempt Group)

Included Accessories
Handling Precautions documentation

The LDR2-50 offers high-output illumination in a durable, compact design—engineered to support efficient integration and reliable performance across automated inspection lines.
