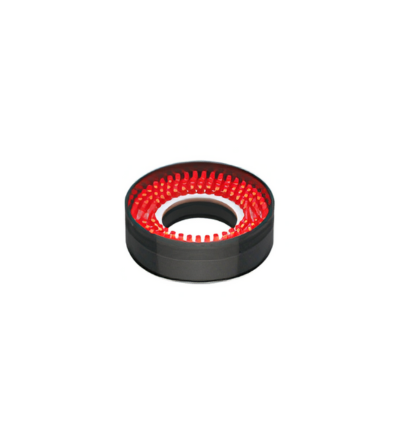

LDR2-70

The LDR2-70 is an LED ring light engineered for precision illumination in machine vision applications requiring broader coverage. With an outer diameter of 70 mm, inner diameter of 35 mm, and a height of 22 mm, this light unit is ideal for illuminating larger workpieces or accommodating wide-field optics.

Designed to deliver concentrated, direct lighting toward the center of the target, the LDR2-70 enhances image contrast and stability even when workpieces have slight positional deviations. Its balanced form factor and efficient light output make it a reliable choice for high-accuracy inspection tasks across a range of industrial environments.

TECHNICAL INFORMATION:

The LDR2-70 is an LED ring light designed for machine vision applications requiring broad, stable illumination. Its robust form factor and high-intensity output make it well-suited for larger workpieces and wide-area inspections in industrial environments.

LED Color: Variety
Peak Wavelength: 630 nm (typical)
Dimensions: Ø70 mm (outer), Ø35 mm (inner), Height: 22 mm
Input Voltage: 24 VDC
Power Consumption: 6.1 W (max.)
Polarity & Signal: Pin 1: (+), Pin 2: NC, Pin 3: (−)
Cable Length: 300 mm
Input Connector: SMR-03V-B
Case Material: Aluminum alloy
Cooling Method: Natural air cooling
Weight: 110 g

Environmental Specifications
Operating Temperature & Humidity: 0 to 40°C; 20 to 85% RH (non-condensing)
Storage Temperature & Humidity: -20 to 60°C; 20 to 85% RH (non-condensing)

Certifications & Standards
Compliance: CE, UKCA, RoHS
Photobiological Safety: IEC 62471 (Exempt Group)

Included Accessories
Handling Precautions documentation

The LDR2-70 delivers high-performance illumination in a durable, thermally managed design—supporting consistent imaging quality in demanding inspection environments.
