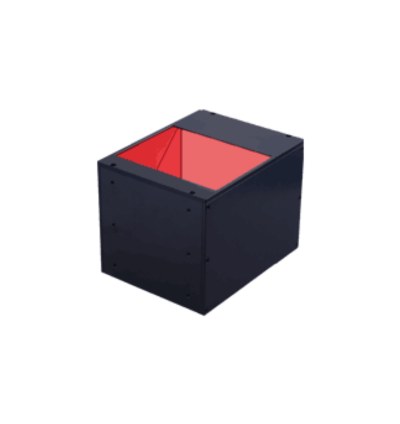

The LFV3-100(A) is an LED coaxial light designed for high-uniformity illumination of reflective and uneven surfaces. Measuring 110 x 148 x 105 mm, it features a large 102 x 100 mm light-emitting area, making it ideal for inspecting sizable or mirror-finished components.
blue,red,white
TECHNICAL INFORMATION:
The LFV3-100(A) is a high-power LED coaxial light tailored for large-format imaging tasks. It delivers uniform illumination at a peak wavelength of 630 nm, ideal for enhancing edge contrast and minimizing specular interference in precision inspection environments.
- LED color: Red, White, Blue
- Peak wavelength: 630 nm typ.
- Dimensions: W 110 mm x D 148 mm x H 105 mm
- Input voltage: 24VDC
- Power consumption: 22 W max.
- Polarity & signal: 1: (+), 2: NC, 3: (-)
- Cable length: 300 mm
- Input connector: SMR-03V-B
- Case material: Aluminum alloy, Glass
- Cooling method: Natural air cooling
- Weight: 1060 g
- Operating temperature and humidity: Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation)
- Storage temperature and humidity: Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
- Conformed standards: CE, UKCA, RoHS, IEC 62471(Exempt)
- Accessories: User Manual
Quick Info for the LFV3-100(A)
| Lighting Type: | Coaxial Lights |
|---|---|
| Manufacturer: | CCS Inc |
