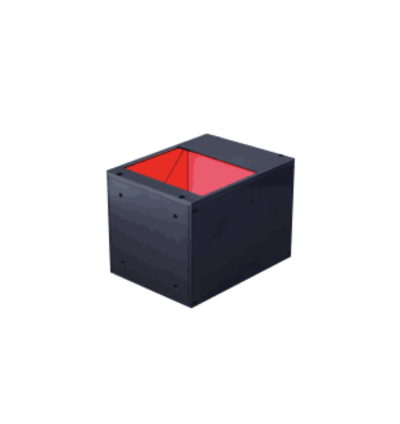

The LFV3-130(A) is a high-output coaxial light designed for wide-area, precision illumination in machine vision systems. With overall dimensions of 142 x 182 x 135 mm and a large 134 x 130 mm light-emitting surface, this unit is built to support detailed inspection of large or reflective workpieces.
blue,red,white
TECHNICAL INFORMATION:
The LFV3-130(A) is a LED coaxial illumination unit engineered for robust industrial use, featuring a peak wavelength of 630 nm for enhanced visibility of surface features.
- LED color: Red, White, Blue
- Peak wavelength: 630 nm typ.
- Dimensions: W 142 mm x D 182 mm x H 135 mm
- Input voltage: 24VDC
- Power consumption: 31 W max.
- Polarity & signal: 1: (+), 2: NC, 3: (-)
- Cable length: 300 mm
- Input connector: SMR-03V-B
- Case material: Aluminum alloy, Glass
- Cooling method: Natural air cooling
- Weight: 1750 g
- Operating temperature and humidity: Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation)
- Storage temperature and humidity: Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
- Conformed standards: CE, UKCA, RoHS, IEC 62471(Exempt)
- Accessories: User Manual
Quick Info for the LFV3-130(A)
| Lighting Type: | Coaxial Lights |
|---|---|
| Manufacturer: | CCS Inc |
