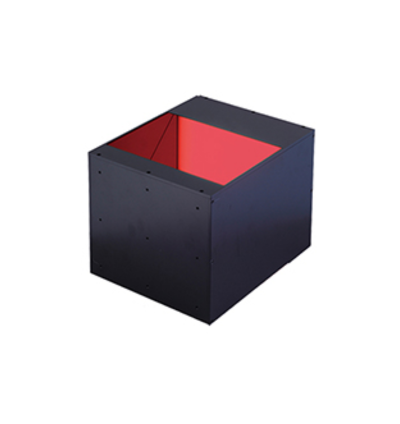

The LFV3-200(A) is a high-output LED coaxial light designed for uniform illumination of large, reflective surfaces. Measuring 226 x 272 x 207 mm with a wide 218 x 202 mm emitting area, this unit delivers consistent, diffused lighting ideal for capturing detail on mirrored, glossy, or highly specular materials.
blue,red,white
TECHNICAL INFORMATION:
The LFV3-200(A) is a robust LED coaxial light source engineered for demanding inspection tasks requiring broad, stable illumination. With a typical peak wavelength of 630 nm, it operates on a 24 VDC power supply with a maximum power consumption of 43 W.
- LED color: Red, White, Blue
- Peak wavelength: 630 nm typ.
- Dimensions: W 226 mm x D 272 mm x H 207 mm
- Input voltage: 24VDC
- Power consumption: 43 W max.
- Polarity & signal: 1: (+), 2: NC, 3: (-)
- Cable length: 300 mm
- Input connector: SMR-03V-B
- Case material: Aluminum alloy, Glass, Steel sheet
- Cooling method: Natural air cooling
- Weight: 4350 g
- Operating temperature and humidity: Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation)
- Storage temperature and humidity: Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
- Conformed standards: CE, UKCA, RoHS, IEC 62471(Exempt)
- Accessories: User Manual
Quick Info for the LFV3-200(A)
| Lighting Type: | Coaxial Lights |
|---|---|
| Manufacturer: | CCS Inc |
