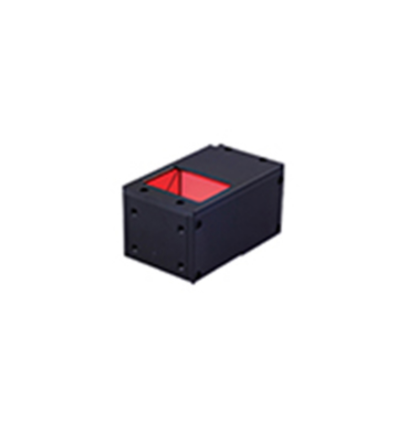

The LFV3-35(A) is a LED coaxial illumination unit engineered for uniform lighting of reflective and highly polished surfaces. Measuring 46 x 75 x 39 mm, with a light-emitting surface of 38 x 34 mm, this compact light integrates seamlessly into vision systems requiring precise alignment between the illumination axis and the camera lens. Its design incorporates a half mirror to direct diffused light along the same optical path as the lens—eliminating shadows and uneven lighting.
TECHNICAL INFORMATION:
The LFV3-35(A) is a LED coaxial light designed for precision inspection of reflective or flat surfaces. With its integrated half mirror and compact footprint, it provides aligned, shadow-free illumination along the same axis as the camera—ideal for surface inspection and imaging tasks requiring uniformity and contrast.
- LED color: Red, White, Blue
- Peak wavelength: 630 nm typ.
- Dimensions: W 46 mm x D 75 mm x H 39 mm
- Input voltage: 24VDC
- Power consumption: 3.1 W max.
- Polarity & signal: 1: (+), 2: NC, 3: (-)
- Cable length: 300 mm
- Input connector: SMR-03V-B
- Case material: Aluminum alloy, Glass
- Cooling method: Natural air cooling
- Weight: 175 g
- Operating temperature and humidity: Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation)
- Storage temperature and humidity: Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
- Conformed standards: CE, UKCA, RoHS, IEC 62471(Exempt)
- Accessories: User Manual
Quick Info for the LFV3-35(A)
| Lighting Type: | Coaxial Lights |
|---|---|
| Manufacturer: | CCS Inc |
