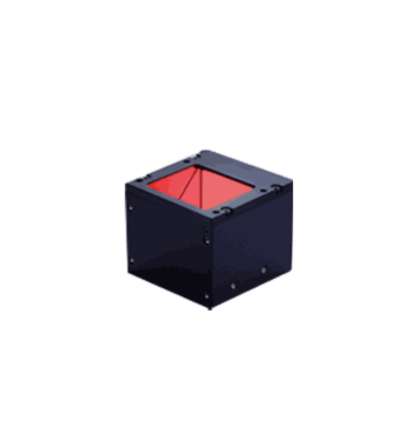

The LFV3-40(A) is a coaxial LED light designed for high-precision imaging applications. Featuring a 40 × 40 mm light-emitting surface within a compact 52 × 54 × 44 mm housing, this unit provides uniform illumination along the same optical axis as the camera. Its half-mirror construction ensures consistent lighting on reflective or low-contrast surfaces, making it ideal for surface inspection, alignment, and measurement tasks.
TECHNICAL INFORMATION:
The LFV3-40(A) is a LED coaxial light engineered for precision inspection of reflective and low-contrast surfaces. Its integrated half-mirror design aligns uniform, diffused illumination along the optical axis of the imaging system, enabling shadow-free results in demanding machine vision applications.
- LED color: Red, White, Blue
- Peak wavelength: 635 nm typ.
- Dimensions: W 52 mm x D 54 mm x H 44 mm
- Input voltage: 24VDC
- Power consumption: 4.6 W max.
- Polarity & signal: 1: (+), 2: NC, 3: (-)
- Cable length: 300 mm
- Input connector: SMR-03V-B
- Case material: Aluminum alloy, Glass, Resin
- Cooling method: Natural air cooling
- Weight: 100 g max.
- Operating temperature and humidity: Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation)
- Storage temperature and humidity: Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
- Conformed standards: CE, UKCA, RoHS, IEC 62471(Exempt)
- Accessories: User Manual
Quick Info for the LFV3-40(A)
| Lighting Type: | Coaxial Lights |
|---|---|
| Manufacturer: | CCS Inc |
