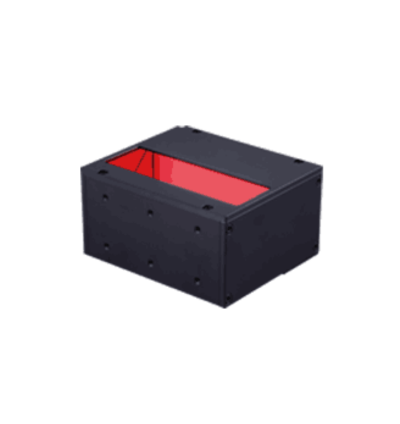

The LFV3-50X100(A) is a LED coaxial light designed for uniform, reflection-free illumination of glossy or mirrored surfaces. Featuring a half-mirror optical design and a wide 102 × 52 mm light-emitting surface, this unit delivers consistent, diffused lighting aligned with the optical axis of the camera—minimizing glare and enhancing inspection accuracy.
blue,red,white
TECHNICAL INFORMATION:
The LFV3-50X100(A) is a high-performance LED coaxial light engineered for uniform surface illumination in precision imaging applications. Its large-format design and integrated half-mirror system align diffused light with the optical axis, making it ideal for eliminating specular reflections on reflective components and ensuring consistent image quality.
- LED color: Red, White, Blue
- Peak wavelength: 630 nm typ.
- Dimensions: W 110 mm x D 94 mm x H 57 mm
- Input voltage: 24VDC
- Power consumption: 17 W max.
- Polarity & signal: 1: (+), 2: NC, 3: (-)
- Cable length: 300 mm
- Input connector: SMR-03V-B
- Case material: Aluminum alloy, Glass
- Cooling method: Natural air cooling
- Weight: 530 g
- Operating temperature and humidity: Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation)
- Storage temperature and humidity: Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
- Conformed standards: CE, UKCA, RoHS, IEC 62471(Exempt)
- Accessories: User Manual
Quick Info for the LFV3-50X100(A)
| Lighting Type: | Coaxial Lights |
|---|---|
| Manufacturer: | CCS Inc |
