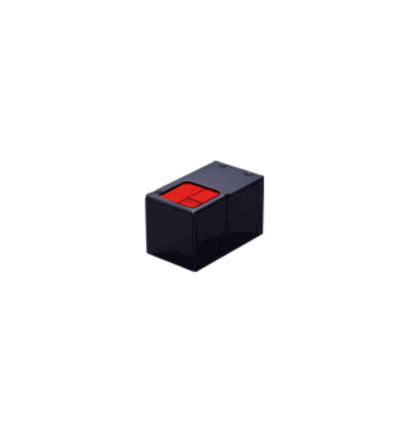

The LFV3-CP-18 is a compact coaxial light unit that emits light for precision imaging applications. Measuring just 30 × 41 × 24 mm, it features a 20 × 20 mm illuminated area, making it ideal for inspecting small components or features with reflective or uneven surfaces.
blue,red,white
TECHNICAL INFORMATION:
The LFV3-CP-18 is a compact LED coaxial light unit optimized for precision inspection tasks requiring consistent, glare-free illumination. Designed for tight spaces and reflective surfaces, it delivers focused, uniform lighting aligned with the camera’s optical axis—ideal for electronics inspection and small part analysis.
- LED color: Red, White, Blue
- Peak wavelength: 635 nm typ.
- Dimensions: W 30 mm x D 41 mm x H 24 mm
- Input voltage: 24VDC
- Power consumption: 3.3 W max.
- Polarity & signal: 1: (+), 2: NC, 3: (-)
- Cable length: 0.3 m
- Input connector: SMR-03V-B
- Case material: Aluminum alloy, Glass, Steel sheet
- Cooling method: Natural air cooling
- Weight: 70 g max.
- Operating temperature and humidity: Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation)
- Storage temperature and humidity: Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
- Conformed standards: CE, UKCA, RoHS, IEC 62471(Exempt)
- Accessories: User Manual
Quick Info for the LFV3-CP-18
| Lighting Type: | Coaxial Lights |
|---|---|
| Manufacturer: | CCS Inc |
