LFX3-50RD

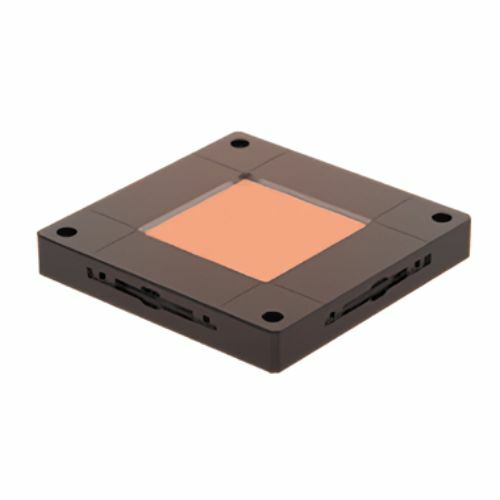

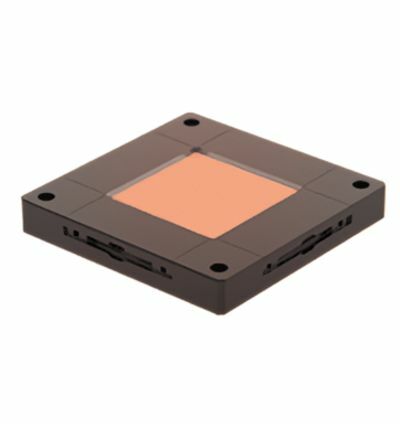

The CCS LFX3-50RD is a high-performance flat light unit designed to provide uniform, shadow-free illumination. Combining the advantages of coaxial and dome lighting, this unit ensures even light distribution across its full field. Ideal for precision inspection and imaging applications, the LFX3-50RD emits red light at a peak wavelength of 632 nm. Its compact and durable design, featuring an aluminum alloy casing and a protective diffusion plate, makes it well-suited for industrial environments. This light unit is a reliable solution for applications requiring consistent, high-quality illumination in industrial imaging and inspection systems.

TECHNICAL INFORMATION:

Specifications:

• LED Color: Red
• Peak Wavelength: 632 nm (typical)
• Dimensions: 93 mm (W) × 93 mm (D) × 13.1 mm (H)
• Light-Emitting Surface: 50 mm × 50 mm
• Input Voltage: 24 VDC
• Power Consumption: 13 W max.
• Polarity & Signal: 1: (+), 2: NC, 3: (-)
• Cable Length: 300 mm
• Case Material: Aluminum alloy, resin (protective plate, light-guiding diffusion plate)
• Input Connector: SMR-03V-B
• Compliance: CE, UKCA, RoHS, IEC 62471 (Exempt)
• Operating Temperature & Humidity: 0 to 40°C, 20% to 85% RH (no condensation)
• Storage Temperature & Humidity: -20 to 60°C, 20% to 85% RH (no condensation)
• Cooling Method: Natural air cooling
• Weight: 230 g max.
