LFXV-100

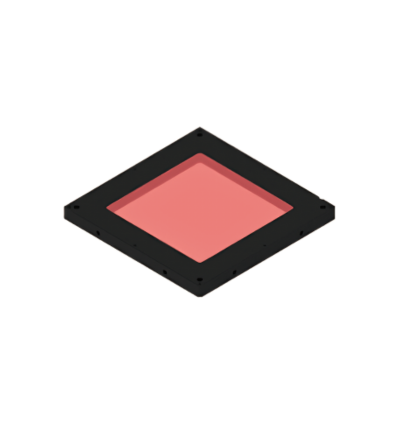

The LFXV-100 is a compact LED flat dome light designed for advanced imaging clarity in precision inspection systems. Measuring just 10 mm in thickness, this light unit features a large 100 x 100 mm emitting surface within a 143 x 143 mm housing—offering broad, shadow-free illumination with minimal mounting space required. As part of the newly enhanced LFX Series, it utilizes an advanced light-guiding plate to maintain uniform brightness across the entire field of view, making it ideal for inspecting reflective, textured, or low-contrast surfaces.

TECHNICAL INFORMATION:

The LFXV-100 is an LED flat dome light optimized for consistent, low-profile illumination in machine vision applications requiring a wide uniform lighting area. It emits light at a typical peak wavelength of 630 nm and is built into a 143 mm x 143 mm housing with a slim 10 mm profile, making it ideal for space-constrained installations.

LED Color: Variety
Peak Wavelength: 630 nm (typical)
Dimensions: W 143 mm x D 143 mm x H 10 mm
Input Voltage: 24 VDC
Power Consumption: 16 W (max.)
Polarity & Signal: Pin 1: (+), Pin 2: NC, Pin 3: (−)
Cable Length: 300 mm
Input Connector: SMR-03V-B
Case Material: Aluminum alloy, Resin (protective plate, light-guiding plate)
Cooling Method: Natural air cooling
Weight: 400 g max.

Environmental Specifications
Operating Temperature & Humidity: 0 to 40°C; 20% to 85% RH (non-condensing, indoors only)
Storage Temperature & Humidity: -20 to 60°C; 20% to 85% RH (non-condensing)

Certifications & Standards
Compliance: CE, UKCA, RoHS
Photobiological Safety: IEC 62471 (Exempt Group)

Included Accessories
User Manual

The LFXV-100 is well-suited for applications requiring highly uniform lighting across medium-sized fields of view, offering excellent performance for inspection tasks involving reflective or low-contrast targets.
