LFXV-150

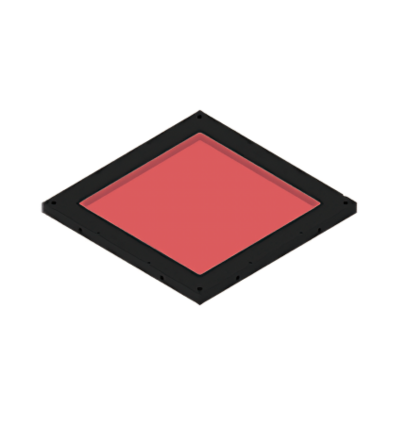

The LFXV-150 is a high-performance LED flat dome light engineered for machine vision applications that require broad, uniform illumination across larger inspection areas. Measuring 193 x 193 x 16 mm with a 150 x 150 mm light-emitting surface, this compact yet powerful unit is part of the next-generation LFX Series—designed to deliver enhanced brightness, edge-to-edge uniformity, and a slim profile ideal for space-sensitive installations. Its advanced light-guiding plate ensures a clear field of view, making it suitable for inspecting reflective or irregular surfaces with minimal glare and shadowing.

TECHNICAL INFORMATION:

The LFXV-150 is an LED flat dome light designed for uniform, shadow-free illumination in precision imaging environments. With a peak wavelength of 630 nm, it provides consistent performance across the entire 150 x 150 mm active area, making it ideal for inspection tasks that require high visibility and minimal glare.

LED Color: Variety
Peak Wavelength: 630 nm (typical)
Dimensions: W 193 mm x D 193 mm x H 16 mm
Input Voltage: 24 VDC
Power Consumption: 28 W (max.)
Polarity & Signal: Pin 1: (+), Pin 2: NC, Pin 3: (−)
Cable Length: 300 mm
Input Connector: SMR-03V-B
Case Material: Aluminum alloy, Resin (protective plate, light-guiding plate)
Cooling Method: Natural air cooling
Weight: 870 g max.

Environmental Specifications

Operating Temperature & Humidity: 0 to 40°C; 20% to 85% RH (non-condensing, indoors only)
Storage Temperature & Humidity: -20 to 60°C; 20% to 85% RH (non-condensing)

Certifications & Standards

Compliance: CE, UKCA, RoHS
Photobiological Safety: IEC 62471 (Exempt Group)

Included Accessories

• User Manual

Engineered for machine vision systems requiring high-performance diffuse illumination, the LFXV-150 delivers stable optical output in a thin, space-efficient design.
