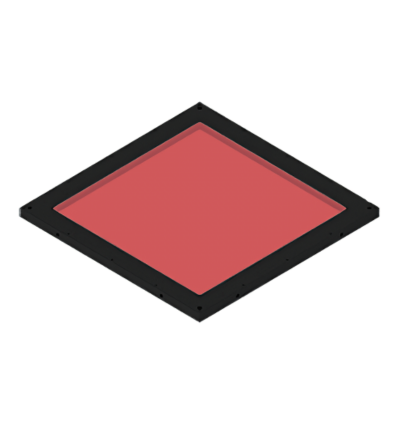

LFXV-200

The LFXV-200 is a next-generation LED flat dome light designed for high-uniformity illumination across large fields of view. Measuring 243 x 243 x 16 mm, this compact and lightweight unit features a wide 200 x 200 mm emitting surface, making it ideal for imaging larger workpieces or components with complex geometries. Part of the newly enhanced LFXV Series, the LFXV-200 leverages a refined light-guiding plate to ensure bright, even coverage while maintaining a low-profile form factor for space-constrained setups.

TECHNICAL INFORMATION:

The LFXV-200 is a high-intensity LED flat dome light optimized for wide-area uniformity in precision imaging applications. Emitting at a typical peak wavelength of 630 nm, this unit features a robust 243 x 243 x 16 mm housing with a large 200 x 200 mm illuminated surface. Its advanced light-guiding plate delivers consistent brightness across the full field, reducing reflections and shadows on complex or reflective workpieces.

LED Color: Variety
Peak Wavelength: 630 nm (typical)
Dimensions: W 243 mm x D 243 mm x H 16 mm
Input Voltage: 24 VDC
Power Consumption: 31 W (max.)
Polarity & Signal: Pin 1: (+), Pin 2: NC, Pin 3: (−)
Cable Length: 300 mm
Input Connector: SMR-03V-B
Case Material: Aluminum alloy, Resin (protective plate, light-guiding plate)
Cooling Method: Natural air cooling
Weight: 1300 g (max.)

Environmental Specifications
Operating Temperature & Humidity: 0 to 40°C; 20% to 85% RH (non-condensing, indoors only)
Storage Temperature & Humidity: -20 to 60°C; 20 to 85% RH (non-condensing)

Certifications & Standards
Compliance: CE, UKCA, RoHS
Photobiological Safety: IEC 62471 (Exempt Group)

Included Accessories
User Manual

The LFXV-200 is ideal for integration into machine vision systems requiring large, uniform illumination with minimal installation depth.
