LFXV-200X100

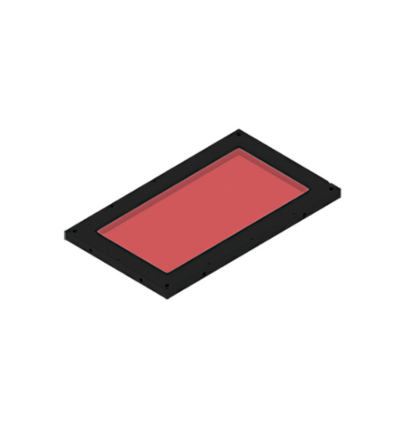

The LFXV-200X100 is an LED flat dome light designed to deliver uniform, low-glare illumination across rectangular inspection fields. With a light-emitting area of 200 x 100 mm and a slim 16 mm housing, it supports space-constrained setups while ensuring even lighting across varied surface geometries. Ideal for imaging applications requiring consistent brightness and minimal shadowing, this model brings the benefits of the next-generation LFXV Series to large-format or asymmetrical components.

TECHNICAL INFORMATION:

The LFXV-200X100 is a precision-engineered LED flat dome light optimized for uniform, wide-area illumination in machine vision applications. Emitting light at a typical peak wavelength of 630 nm, this unit features a rectangular housing measuring 243 mm x 143 mm x 16 mm and provides consistent coverage across a 200 mm x 100 mm emitting surface. Its compact, low-profile design is ideal for systems requiring minimal vertical clearance without compromising illumination quality.

LED Color: Variety
Peak Wavelength: 630 nm (typical)
Dimensions: W 243 mm x D 143 mm x H 16 mm
Input Voltage: 24 VDC
Power Consumption: 23 W (max.)
Polarity & Signal: Pin 1: (+), Pin 2: NC, Pin 3: (−)
Cable Length: 300 mm
Input Connector: SMR-03V-B
Case Material: Aluminum alloy, Resin (protective plate, light-guiding plate)
Cooling Method: Natural air cooling
Weight: 870 g (max.)

Environmental Specifications
Operating Temperature & Humidity: 0 to 40°C; 20% to 85% RH (non-condensing, indoors only)
Storage Temperature & Humidity: -20 to 60°C; 20 to 85% RH (non-condensing)

Certifications & Standards
Compliance: CE, UKCA, RoHS
Photobiological Safety: IEC 62471 (Exempt Group)

Included Accessories
User Manual

Designed for visual inspection scenarios involving reflective, textured, or large-format surfaces, the LFXV-200X100 offers exceptional optical clarity and reliability in a lightweight, integration-friendly form factor.
