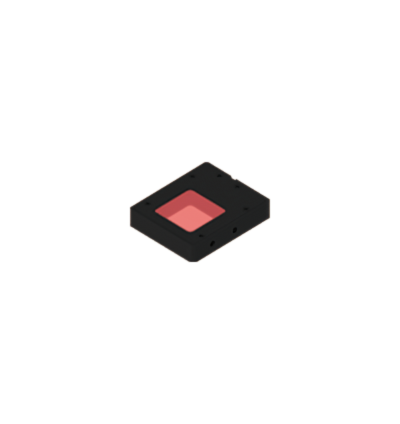

LFXV-25

The LFXV-25 is a compact LED flat dome light from the next-generation LFX Series, engineered for high-uniformity illumination in a space-saving design. Measuring just 43 x 52 x 10 mm with a 25 x 25 mm light-emitting surface, it delivers diffuse, shadow-free lighting ideal for inspecting reflective surfaces or objects with varying depths. A newly developed light-guiding plate enhances clarity across the field of view, while the ultra-thin, lightweight housing simplifies integration into space-constrained vision systems across industries such as electronics, medical devices, and precision manufacturing.

TECHNICAL INFORMATION:

The LFXV-25 is an LED flat dome light designed for precision imaging tasks where uniformity and compactness are key. Emitting at a typical peak wavelength of 630 nm, this light features a low-profile form factor (43 x 52 x 10 mm) and is ideal for minimizing shadows and glare in close-range inspection environments. Its advanced light-guiding plate enhances diffusion, providing consistent illumination even across uneven or reflective surfaces.

LED Color: Variety
Peak Wavelength: 630 nm (typical)
Dimensions: W 43 mm x D 52 mm x H 10 mm
Input Voltage: 24 VDC
Power Consumption: 1.2 W (max.)
Polarity & Signal: Pin 1: (+), Pin 2: NC, Pin 3: (−)
Cable Length: 300 mm
Input Connector: SMR-03V-B
Case Material: Aluminum alloy, Resin (protective plate, light-guiding plate)
Cooling Method: Natural air cooling
Weight: 80 g (max.)

Environmental Specifications
Operating Temperature & Humidity: 0 to 40°C; 20% to 85% RH (non-condensing, indoor use only)
Storage Temperature & Humidity: -20 to 60°C; 20% to 85% RH (non-condensing)

Certifications & Standards
Compliance: CE, UKCA, RoHS
Photobiological Safety: IEC 62471 (Exempt Group)

Included Accessories
User Manual

This unit’s precision optics and lightweight design make it an excellent fit for embedded vision systems requiring stable, glare-free illumination in confined spaces.
