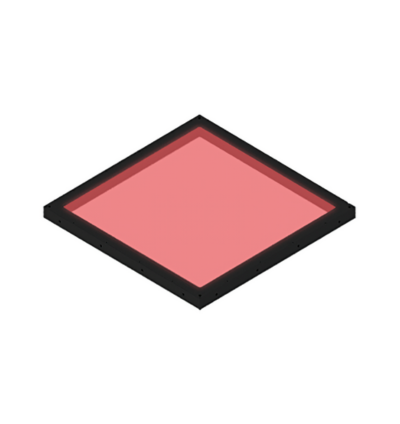

LFXV-300

The LFXV-300 is a high-uniformity LED flat dome light designed for wide-area inspection and imaging. Measuring 343 x 343 x 16 mm, this advanced light unit features a large 300 x 300 mm emitting surface and leverages a newly developed light-guiding plate to ensure consistent illumination across the entire field of view. Ideal for applications requiring a larger depth of field or imaging of reflective surfaces, the LFXV-300 provides bright, shadow-free lighting in a low-profile, space-efficient form factor. As part of the next-generation LFXV Series, it delivers enhanced clarity and improved performance in precision visual inspection.

TECHNICAL INFORMATION:

The LFXV-300 is a large-format LED flat dome light engineered for applications requiring high-intensity, uniform surface illumination over expansive areas. Emitting light at a typical peak wavelength of 630 nm, this model is ideal for precise inspection and imaging tasks where consistent contrast and minimal shadowing are critical.

LED Color: Variety
Peak Wavelength: 630 nm (typical)
Dimensions: W 343 mm x D 343 mm x H 16 mm
Input Voltage: 24 VDC
Power Consumption: 46 W (max.)
Polarity & Signal: Pin 1: (+), Pin 2: NC, Pin 3: (−)
Cable Length: 300 mm
Input Connector: SMR-03V-B
Case Material: Aluminum alloy, Resin (protective plate, light-guiding plate)
Cooling Method: Natural air cooling
Weight: 2000 g (max.)

Environmental Specifications
Operating Temperature & Humidity: 0 to 40°C; 20% to 85% RH (non-condensing, indoors only)
Storage Temperature & Humidity: -20 to 60°C; 20% to 85% RH (non-condensing)

Certifications & Standards
Compliance: CE, UKCA, RoHS
Photobiological Safety: IEC 62471 (Exempt Group)

Included Accessories
User Manual

The LFXV-300 is built to deliver reliable, high-performance lighting for machine vision systems that require clarity and consistency over large inspection surfaces.
