LFXV-300X100

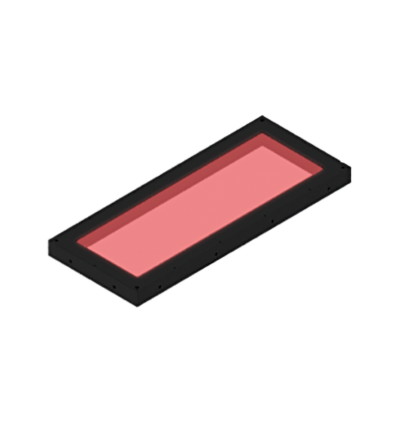

The LFXV-300X100 is a high-performance flat dome light that emits light across a broad 100 x 300 mm illumination area. Housed in a slim 143 x 343 x 16 mm profile, this unit belongs to the next-generation LFX Series, featuring a newly engineered light-guiding plate that delivers exceptional brightness and uniformity. Ideal for wide-field imaging tasks, the LFXV-300X100 provides a clear field of view even at greater depths, supporting accurate inspection of larger or irregularly shaped objects in space-constrained systems.

TECHNICAL INFORMATION:

The LFXV-300X100 is an LED flat dome light designed for large-area illumination in high-precision imaging environments. With a peak wavelength of 630 nm, this unit ensures consistent, diffuse lighting across a 300 mm horizontal span, making it ideal for wide-format inspection or part recognition tasks.

LED Color: Variety
Peak Wavelength: 630 nm (typical)
Dimensions: W 143 mm x D 343 mm x H 16 mm
Input Voltage: 24 VDC
Power Consumption: 31 W (max.)
Polarity & Signal: Pin 1: (+), Pin 2: NC, Pin 3: (−)
Cable Length: 300 mm
Input Connector: SMR-03V-B
Case Material: Aluminum alloy, Resin (protective plate, light-guiding plate)
Cooling Method: Natural air cooling
Weight: 1300 g (max.)

Environmental Specifications
Operating Temperature & Humidity: 0 to 40°C; 20% to 85% RH (non-condensing, indoors only)
Storage Temperature & Humidity: -20 to 60°C; 20% to 85% RH (non-condensing)

Certifications & Standards
Compliance: CE, UKCA, RoHS
Photobiological Safety: IEC 62471 (Exempt Group)

Included Accessories
User Manual

Built for stable output and low-profile mounting, the LFXV-300X100 enhances edge clarity and reduces reflection artifacts, even in systems requiring large depth-of-field imaging.
