LFXV-300X200

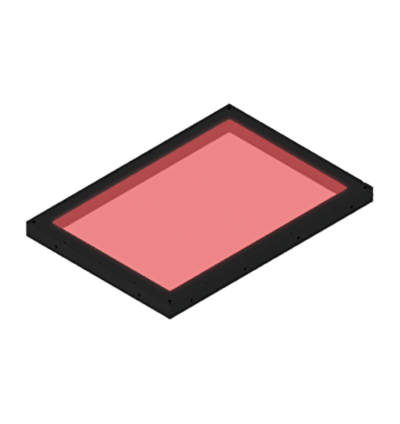

The LFXV-300X200 is an LED flat dome light designed to deliver high-intensity, uniform illumination across wide inspection areas. Measuring 243 x 343 x 16 mm with a 200 x 300 mm light-emitting surface, this compact unit is ideal for large-part imaging or applications requiring minimal reflection and consistent contrast. Part of the next-generation LFXV Series, it features an advanced light-guiding plate that ensures a clear field of view, even at greater depths of field.

TECHNICAL INFORMATION:

The LFXV-300X200 is a high-output LED light source designed for uniform surface illumination in precision imaging environments. Emitting light at a typical peak wavelength of 630 nm, this model integrates a specially engineered light-guiding plate within a 243 x 343 mm housing, optimized for edge-to-edge brightness consistency. The slim 16 mm profile and lightweight aluminum-resin construction make it suitable for tight installation spaces where thermal management and mechanical stability are critical.

LED Color: Variety
Peak Wavelength: 630 nm (typical)
Dimensions: W 243 mm x D 343 mm x H 16 mm
Input Voltage: 24 VDC
Power Consumption: 38 W (max.)
Polarity & Signal: Pin 1: (+), Pin 2: NC, Pin 3: (−)
Cable Length: 300 mm
Input Connector: SMR-03V-B
Case Material: Aluminum alloy, Resin (protective plate, light-guiding plate)
Cooling Method: Natural air cooling
Weight: 1600 g (max.)

Environmental Specifications
Operating Temperature & Humidity: 0 to 40°C; 20% to 85% RH (non-condensing, indoors only)
Storage Temperature & Humidity: -20 to 60°C; 20% to 85% RH (non-condensing)

Certifications & Standards
Compliance: CE, UKCA, RoHS
Photobiological Safety: IEC 62471 (Exempt Group)

Included Accessories
User Manual

Engineered for integration into high-precision inspection systems, the LFXV-300X200 balances energy efficiency with broad, stable illumination across large imaging fields.
