LFXV-50

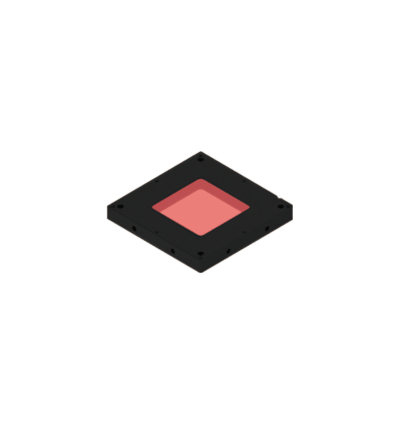

The LFXV-50 is an LED flat dome light designed for high-uniformity illumination in compact machine vision systems. Measuring just 10 mm in height, this low-profile unit features a 50 x 50 mm light-emitting surface and a total footprint of 93 x 93 mm—ideal for installations with strict spatial constraints. As part of the next-generation LFX Series, it integrates an advanced light-guiding plate that enhances light diffusion for shadow-free, high-contrast imaging across reflective or uneven surfaces.

TECHNICAL INFORMATION:

The LFXV-50 is an LED flat dome light optimized for precision imaging applications requiring uniform illumination with minimal glare and shadowing. Emitting light at a typical peak wavelength of 630 nm, it features a compact housing with dimensions of 93 mm x 93 mm x 10 mm, making it suitable for integration into space-constrained machine vision systems.

LED Color: Variety
Peak Wavelength: 630 nm (typical)
Dimensions: W 93 mm x D 93 mm x H 10 mm
Input Voltage: 24 VDC
Power Consumption: 9.1 W (max.)
Polarity & Signal: Pin 1: (+), Pin 2: NC, Pin 3: (−)
Cable Length: 300 mm
Input Connector: SMR-03V-B
Case Material: Aluminum alloy, Resin (protective plate, light-guiding plate)
Cooling Method: Natural air cooling
Weight: 190 g max.

Environmental Specifications
Operating Temperature & Humidity: 0 to 40°C; 20% to 85% RH (non-condensing, indoors only)
Storage Temperature & Humidity: -20 to 60°C; 20 to 85% RH (non-condensing)

Certifications & Standards
Compliance: CE, UKCA, RoHS
Photobiological Safety: IEC 62471 (Exempt Group)

Included Accessories
User Manual

The LFXV-50 combines compact dimensions with a next-generation light-guiding plate to provide enhanced uniformity and optical clarity in demanding imaging conditions.
