LFXV-75

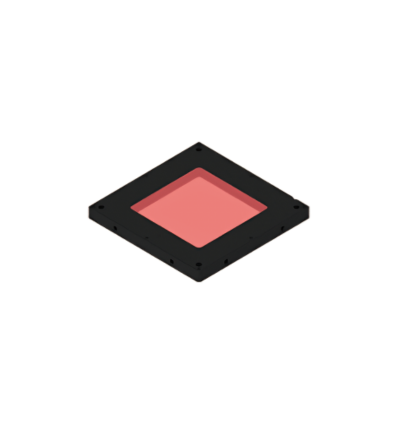

The LFXV-75 is an LED flat dome light designed for high-uniformity, shadow-free illumination in machine vision applications. Measuring just 10 mm in height, with a 75 x 75 mm light-emitting surface, this compact unit integrates easily into space-constrained setups while delivering the enhanced clarity of the newly developed LFXV light-guiding plate. Its diffused, low-angle lighting makes it ideal for inspecting reflective or irregular surfaces with improved contrast and minimal glare.

TECHNICAL INFORMATION:

The LFXV-75 is a low-profile LED flat dome light built for precision inspection in tight spaces. It emits at a typical peak wavelength of 630 nm and is optimized for uniform, glare-free illumination across a wide field of view. The unit’s slim aluminum alloy housing measures 118 mm x 118 mm x 10 mm, integrating a resin-based protective and light-guiding plate for efficient diffusion.

LED Color: Variety
Peak Wavelength: 630 nm (typical)
Dimensions: W 118 mm x D 118 mm x H 10 mm
Input Voltage: 24 VDC
Power Consumption: 14 W (max.)
Polarity & Signal: Pin 1: (+), Pin 2: NC, Pin 3: (−)
Cable Length: 300 mm
Input Connector: SMR-03V-B
Case Material: Aluminum alloy, Resin (protective plate, light-guiding plate)
Cooling Method: Natural air cooling
Weight: 290 g max.

Environmental Specifications
Operating Temperature & Humidity: 0 to 40°C; 20% to 85% RH (non-condensing, indoors only)
Storage Temperature & Humidity: -20 to 60°C; 20 to 85% RH (non-condensing)

Certifications & Standards
Compliance: CE, UKCA, RoHS
Photobiological Safety: IEC 62471 (Exempt Group)

Included Accessories
User Manual

The LFXV-75’s compact, high-performance design makes it ideal for machine vision applications requiring stable illumination over reflective, contoured, or low-contrast surfaces.
